    1630*1500*2300mm Single Turnstile Gate / SS Bi - Directional Turnstile

    Ask Lasest Price
    Brand Name : Goldantell
    Model Number : GAT-502
    Certification : CE/ROHS/FCC/SGS/IS9001
    Price : negotiation
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 2,000pcs per month
    Delivery Time : 7 working days after received your payment
    • Product Details
    • Company Profile

    1630*1500*2300mm Single Turnstile Gate / SS Bi - Directional Turnstile


    1630*1500*2300mm Single Turnstile Gate / SS Bi - Directional Turnstile


    Full Height Turnstile Specifications


    Technical parameters


    Housing material

    domestic standard 304#

    stainless steel


    Size

    1630*1500*2300mm (MM)


    Working voltage

    AC220±10%V 50±10%HZ


    Working movement

    DC24V solenoid valve


    Roof Dimensions :

    Φ1500MM


    Passage width:

    ≤600 mm


    Reset time after break down:

    10 seconds


    Time of opening:

    0.2 second


    Pass speed:

    40 persons/min


    Time to work after power on:

    3 seconds


    Normal running life:

    3 million


    LED light:

    direction arrow


    Direction:

    single or bi-directional (optional)


    Working environment:

    indoor/outdoor (with a tent over) -25℃ ~ 70℃


    Relative humidity:

    ≤90% coagulation free


    Communication interface:

    standard RS485 interface,

    distance ≤1200m


    Input interface:

    +12V level signal or pulse

    width>100ms

    12V pulse, drive current>10mA

    Features


    1 . Stainless steel housing, novel and beautiful design, durable and stable mechanism.

    2 . Waterproof, sunscreen, anti-temperature, anti-cold.Suitable to used outdoor.


    3 . Led Indicator Light : Red and green light prompt the passing information.

    4 . with a variety of operating modes you can choose, you can set a one-way or two-way control


    5 . Can integrated with RFID , magnetic card, bar code card, and other control equipment.

    6 . Fire safety function: When out of power , arm will automatically drop down , keep channel open

    7 . Scour protection function : The arm will be locked before received the open signal.


    8 . Can work with different systems , such as access control system , ticketing system , ESD system , consumption system , construction system , etc


    9 . Automatic reset function : Passenger did not pass within the stipulated time , the system will automatically cancel the access permissions of the user . (Default 5 seconds)


    Optional Function


    1 . Stainless steel Material :316 stainless
    2. Stainless steel surface treatment : Satin treatment , brush / hairline finish , mirror finish

    3 . The turnstile controller with counting function, LED digital display function

    4 . Sound, light alarm function: with trespassing, trailing alarm


    5 .Operation Mechanism: Semi automatic Mechanism / fully automatic Mechanism / Manual Type


    Application places


    Prison, Office building, Government, School, Hotel, Super market, Bank, Park

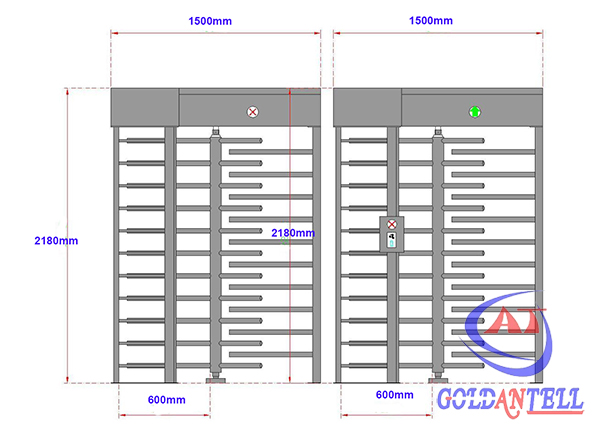

    Full Height Turnstile SizeSize


    Full Height Turnstile Package
