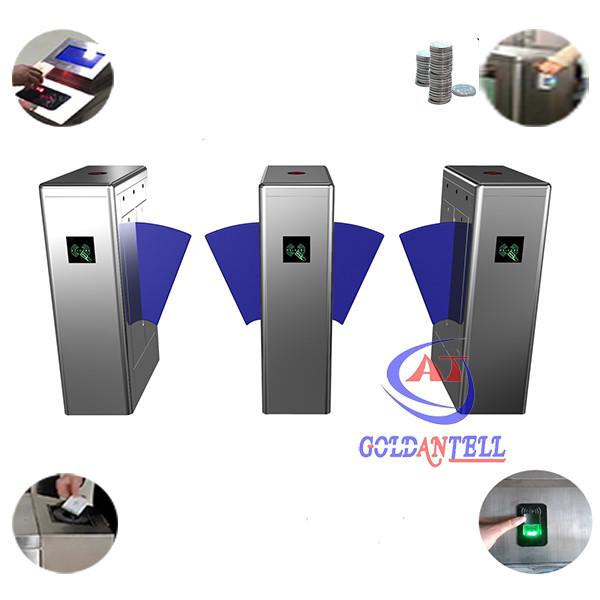

Bi Direction Fingerprint Turnstile Security Gates Waterproof IP54
Specifications:
| Item | GAT-211-1( single motor )
GAT-211-2( double motors )
|
| Name | Bridge type sharp flap turnstile
|
Technical parameters
|
| Working voltage: | AC220±10%V 50±10%HZ
|
| Size: | 600mm (L) * 300mm (W) * 990mm (H)
|
Retractable arm
length: | 260 mm
|
| Pass speed: | 40 persons/min (open), 25-30 persons/min (closed)
|
| Passage width: | ≤600mm
|
| Normal running life: | 3 million
|
| Time of opening/closing: | 0.6 second
|
Time to work after
power on: | 3 seconds |
Reset time after
break down: | 10 seconds |
| Direction: | single or bi-directional (optional)
|
| Drive motor: | DC 24 V brush motor
|
| Working environment: | indoor/outdoor (with a tent over)
-10℃～70℃
|
Communication
interface: | standard RS 485 interface,
distance ≤1200m
|
| Input interface: | +12V level signal or pulse
width>100 ms 12V pulse, drive current>10 mA
|
| Relative humidity: | ≤90% coagulation free
|
| Housing material: | domestic standard 304# stainless steel
|
Description:
1 . With a self-test and alarm function, user-friendly maintenance and
use
2 . Through the main control on the half-built small-press plate,
programmable devices running status
3 . Mechanical structure, sensor features dual anti-trap, in the
process of telescopic boom reset when you meet resistance,
automatically stop or in the default time motor stopped working
4 . Sound, light alarm functions, including unlawful entry, trailing
alarm
5 . Erosion control features, in the absence of gate opening signal is
received, the arm automatically locked
6 . Telescopic synchronization
7 . With automatic reset function, gate opening, after a specified
period of time does not pass; the system will automatically cancel
the user's current access permissions
8 . Power off automatically after the channel open, power-on
self-closing
9 . Connecting with a variety of reading devices which can be linked
to the work of receiving the signal relay switch
10 . May be one-way or two-way control personnel access to
11 . Managing computer directly through the remote control and
management
12 . Counting function can be expanded
13 . Chassis lengthened, telescopic boom material selection
Applications:
Wing turnstiles are mainly used in parks, subway, customers,
airport, bus station, office building, scenic
spot, community, attractions, and exhibition hall doors,
residential, Construction Sites, Industrial Plants,
Marquee Golf Tournaments, State Fairs, Special Sporting Events and
Festivals
Competitive Advantage:
1. 1.2m thickness 304 stainless steel
2. RFID card (IC/ID), Barcode, fingerprint, control accepted
3. CE and ISO 9001-2008 certified
4. OEM and ODM are welcome.
