Electronic Access Control Rfid Turnstile Barrier With Smart Card
Access Control Tripod Turnstile Specifications:
| 1 | Power | AC220C±10V,50HZ |
| 2 | Operating temperature | -15°C--75°C |
| 3 | Relative Humidity | ≤95%, No Condensation |
| 4 | Arm length | 51cm |
| 5 | Passing Speed | 30~40 persons/min(IC Card) |
| 6 | Motor | 0.5NM/24V(Fully Automatic) |
| 7 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V |
| 8 | Communication Connection | RS485 Communication Module Standard. |
| 9 | Material | SUS304,thickness is no less than 1.3mm |
| 10 | Protection Grade | IP54 |
| 11 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
| 12 | Operation Place | Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming
Hall,Residence Area,Enterprise’s Entrance and Exit
Attendance,Gateway Guard,Charge Management,Special Access Control |
Access Control Tripod Turnstile Functions And Features:
| Standard Functions & Features |
| Tripod turnstile function & Features | Fully
automatic | Semi automatic | Manual operation |
1. Alarm function;when arms are pushed by force illegally, alarm
will be triggered automatically and
arms will be set locked. | √ | × |
×
|
| 2. Turnstile can setting the working condition by press the button
of main control board. | √ | √ | × |
| 3. Auto-lift-arm function: the arm can lift automatically with
alert when the power is on again. | Auto-drop-arm
| Auto-drop-arm | NO action |
4. Auto-drop-arm function: the arm can drop down automatically
(default) (or free passing) when the
power is off. | Auto-lift-arm | Auto-lift-arm | NO action |
5. Automatic Reset Functions: after you swap the card, during the
specific time (the system is 10s), if
you didn’t pass the turnstile, the system will cancel your
authority automatically to pass the gate, (reset
time is 1~60s you can adjust it what time is suit for you) | √ | √ | × |

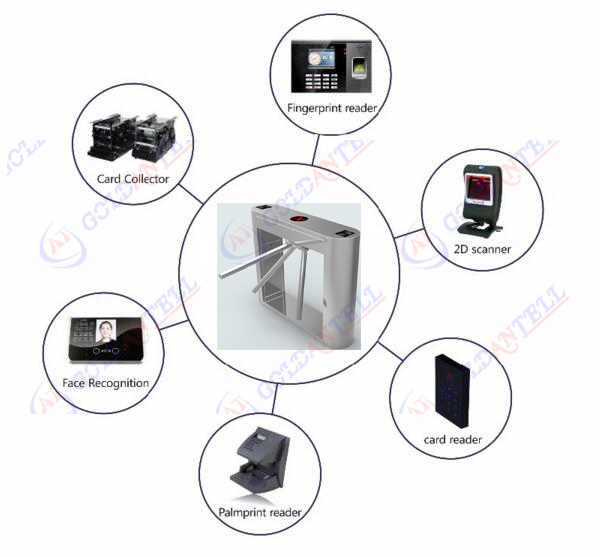

6. The turnstile can work with door access control system/
consumption system /biometric recognition
system/ ESD system and so on | √ | √ | ×
|
Who we are?
Our Shenzhen Goldantell Technologies Co., Ltd is a leading exporter and supply chain service
provider of intelligent turnstile and parking management products
with more than 8 years’ experience.
Our main products include intelligent turnstiles, parking barrier,
RFID card, sentry box, wheel clamp and
other related security access control system and parking system. We
have exported to more than 50
countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve
you. We do hope we can offer you more
help in medical field and build the long term business relationship
with you.
FAQ:
1 - Can you install RFID card reader on the turnstile?
Yes,except the RFID card reader system,we also can install
fingerprint reader system,token system,esd
system,etc.
2 - How about the guarantee and after sale service?
We have 12 month quality guarantee, We own well-tranied and
passional sales & after- sale services who
can speak fluent Engligh language
3 - How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10
working days longer
4 - How about the payment terms?
TT,western union,L/C,our company already joined the trade
assurance,it will highly protect your order
security.
5 - How do you send the product to me,how long?
For sample,normaly send by air or express,about 3-5 days
For quantity purchase,normally by sea, it normally takes 7-60 days
depend on different countries.
6 - What is the package of the turnstile?
Inside with a carton package.Then outside,there are 2 kinds of
packages under your choice:crate
package and closed wooden package.
7 - Can you do OEM service?
We offer below OEM services:
1 ) we can make custom design tursntile,or you tell us your
requirements,we can make a design for you.
2 ) Can print your logo on turnstiles, can customize the retail box
packing and other things.
