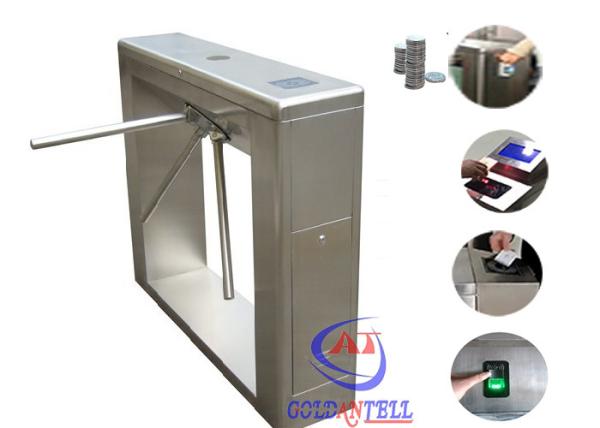

Stainless Steel Access Control System Tripod Turnstile Gate

Pedestrian Speed Gate

technical parameters

1 . Housing material: domestic standard 304# stainless steel

2 . Working voltage:AC220±10%V 50±10%HZ

3 . Working movement :DC24V solenoid valve

4 . Size:1200mm (L) * 280mm (W) * 980mm (H)

5 . Arm width:500 mm Passage width:≤600 mm

6 . Direction: single or bi-directional (optional)

7 . Working environment: indoor/outdoor (with a tent over) -10℃～70℃

8 . Pass speed: 30 persons/min

9 . Emergence:When power off, arm open automatically

10 . Normal running life:3 million

11 . Communication interface: standard RS485 interface, distance ≤1200m

12 . Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA

System Integration

Integrate with visitor management system.

Integrate with ticketing system.

Integrate with access control system required by customers, and built-in reader appointed by customer.

The feature of turnstile barrier

The Tripod Turnstiles are very robust products able to function inside and outside buildings.

The Tripod Turnstile is a waist-height tripod turnstile in a self-supporting housing (2 Feet).

The Tripod Turnstile with dropping arm to free the walkway in the event of an emergency or for certain applications

1.Security

. Active arm can drop clear (emergency or application)

Arms cannot be removed without special tools

. Mechanism cannot be forced

2.Economic

. Inactive arms do not hinder the passage

. Simple to install

3.Flexibility

. Removable end covers for easy integration of any type of access control device

. Numerous configurations covering all cases of pedestrian access control

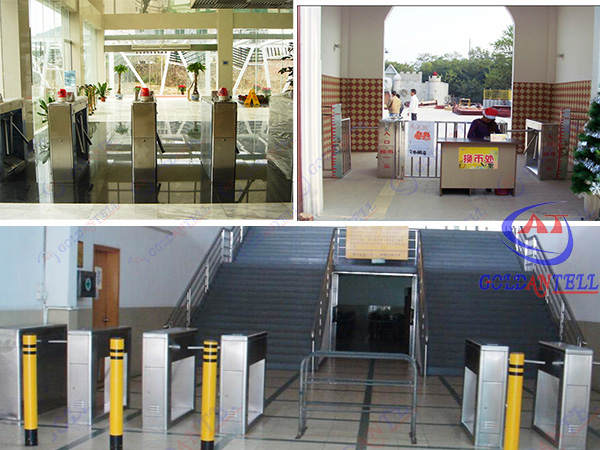

Application

Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence

Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special

Access Control

The package of turnstile barrier

1 . Inside with a carton package.

2 . Outside,there are 2 kinds of packages for your choice:

crate package and closed wooden package
