Waterproof Long Lifetime waist high turnstiles Operated By RFID
Bracelet / Coin / RFID Card
Product description:
1. Fingerprint and RFID Semi automatic bi-direction tripod
turnstile.
2. The housing of our tripod turnstile adopts SUS304 stainless
steel materials; it is robust and durable design.
3. The standard electrical interfaces are flexible for integration
with external systems;
4. They could be integrated with multiple devices like card and
fingerprint readers.
5. Our tripod turnstiles can be used for access control, time
attendance management applications and suitable for stations,
wharfs, tourist attractions, exhibition and convention centers or
special channel control for communities, factories, enterprises and
public institutions etc.
6. Unified quality standards are implemented to ensure overall
reliability, stability and fluency.
Specifications:
| Item | RFID reader tripod turnstile |
| Lane width | 550mm to 600mm |
| Power supply | AC220±10%V 50Hz/AC110±10% 60Hz |
| Power consumption | 40W |
| Access device input voltage | Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
| Motor | No motor |
| Max flow rate | 30 person per minute |
| Arm length | 510mm |
| Working temperature | -20°C~60°C |

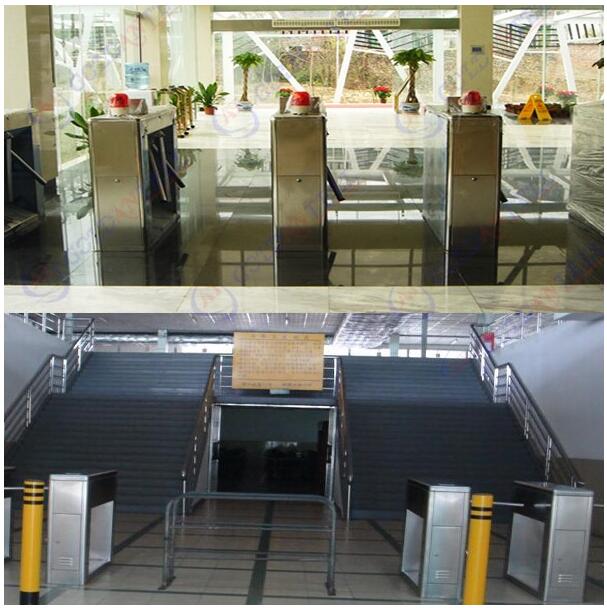

Application:
1. Public Places: Subway, Airports, Stations,Library, Bookstores,
Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Business Organizations:
Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance
and Exit
Attendance.
3. Entertainment Places: Movie theaters, Fitness halls, Country
clubs, Fairground, Clubs,Swimming Hall,
Fitness Gym.
Main features:
- Tripod turnstiles are compact and cost-effective entrance
solutions.
- The body is made of brushed stainless steel which is robust, rigid,
anti-rust and durable.
- Tripod turnstile is ideal for both indoor and outdoor settings.
- It can be integrated with any kind of access controller system
(e.g.: RFID device, Push button, Fingerprint and Biometric device).
- In case of emergency, the turnstile horizontal arm will drop down
to allow free passage when power off.
- It is suitable for areas with high traffic.
