Brand Name : | Goldantell |
Model Number : | GAT-209 |
Certification : | CE/ROHS/FCC/IS9001 |
Price : | negotiation |
Payment Terms : | T/T ,western Union,LC,Paypal, L/C |
Supply Ability : | 2,000pcs per month |
Delivery Time : | 7 working days after received your payment |
Bus station RFID Flap Barrier Gate with counter system and QR code / Bar code reader
Flap Barrier Gate Specifications:
Item | GAT-203-1( single motor ) |
Housing material: | 304 stainless steel/316 stainless steel |
Working voltage: | AC220±10%V 50±10%HZ |
Retractable arm length: | 265mm |
Time of opening: | 0.6 second |
Passage width: | ≤600mm |

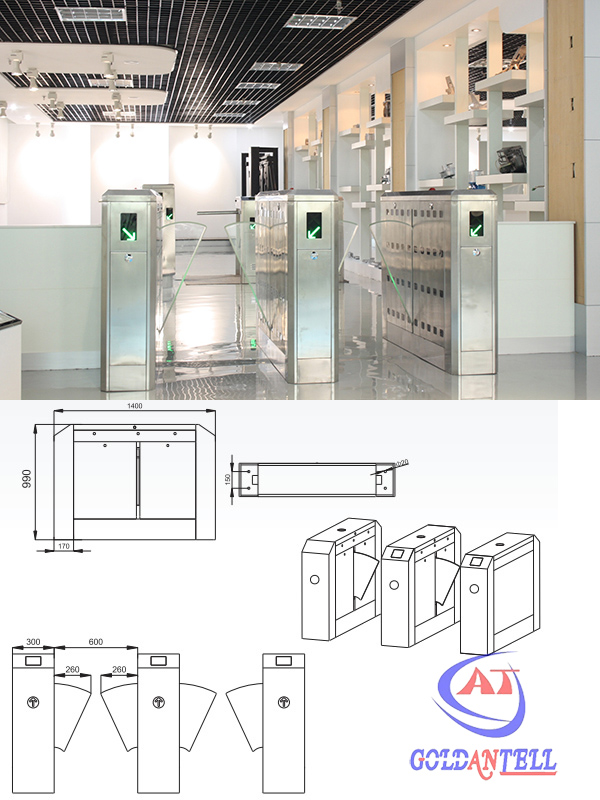

Size | 1200mm /1400mm(L) * 280mm (W) * 980mm (H) |
Reset time after break down: | 10 seconds |
Direction: | single or bi-directional (optional) |
Drive motor: | DC 24 V brush motor |
Number of led lamp: | 1pcs or 3 pcs |
Input interface: | +12V level signal or pulse width>100 ms |
Features of Flap Barrier Turnstile:
1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing,
save space
3. Anti-pinch by mechanism and sensor If there is block during
return of gate, motor stops working automatically. Reset again
after a default delay, the force 2Kg.
4. Anti-illegal in, anti-intrusion, auto close for reverse
direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7. uto-reset. If not go through in a preset time, pass right would
be cancelled automatically. (1-60s adjustable), default time is
10s.
8. Reset function by photocells,Anti-pinch function by photocells,
( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD
system, E-ticket system and so on.
10. One way or two way control
11. Unit can be controlled and administered by remote control
application place :
![]() |
