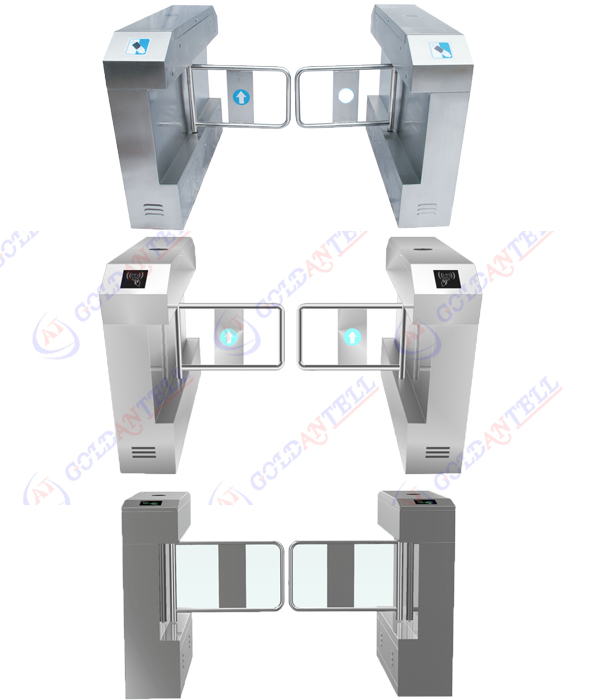

50HZ Access Control turnstile security gates With Infrared Rays
RS485 Interface
Technical parameters
1 Power:AC220C±10V,50HZ
2 Operating temperature:-15°C--75°C
3 Relative Humidity :≤95%, No Condensation
4 Arm length : 60-90cm
5 Passing Speed:30~40 persons/min(IC Card)
6 Motor :0.5NM/24V(Fully Automatic)
7 Input Connection:+12V Level Signal or Pulse Wide>100ms DC12V
8 Communication Connection :RS485 Communication
9 :Material:SUS304,thickness is no less than 1.3mm
10 :Protection Grade:IP54
Functions
Our Turnstile can combine with different kinds of access
readers,like: RFID Reader&Fingerprint Reader
&Coin Machine&Barcode System&ESD Tester Access
Control(If you have access control system,you can
only purchase our turnstiles,if not, our side will install the
access control system for you),except acess
system,also can use remote
Features
1 . Problem-self-checking function.
2 . Many options of working ways: Bi-direction card reading; One
direction card reading and another no
reading; One direction card reading and another freely. And single
direction photocell controlled passing
and close. Working ways can be set in the control panel.
3 . When power off, arm open automatically and power on again, arm
will be held automatically.
4 . When valid card read and passenger passed, arm can be delayed to
close from 1-60s which can be set
in the control panel.
5 . Auto-reposition function: After card read, passenger not pass
within regulated time period, full-height
turnstile will cancel this passing right. And the regulated time
period for passing can be set by managers.
6 . If passenger pass without card read or valid card read, flap
barrier will alarm untill passenger get back
from the flap barrier and then take a valid card to be read for
passing.
7 . Flap barrier is with 485 interface for long-distrance control
concern.
8 . Anti-rush function: If there is no open single, arm will be
holding tightly.
9 . Stable running with little noise.
Access control system

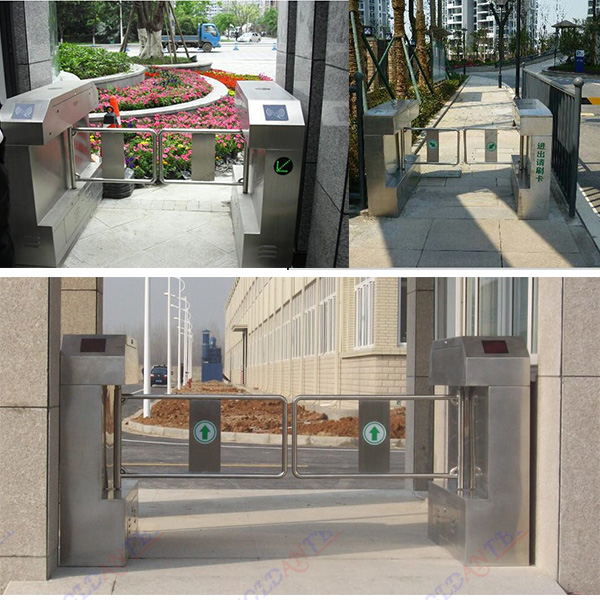

Operation Place
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming
Hall,Residence Area,Enterprise’s Entrance and Exit
Attendance,Gateway Guard,Charge Management,Special Access Control
Package
Inside with a carton package.Then outside,there are 2 kinds of
packages under your choice:crate package and closed wooden package.
FAQ
1 Can you install RFID card reader on the turnstile?
Yes,except the RFID card reader system,we also can install
fingerprint reader system,token system,esd
system,etc.
2 How about the guarantee and after sale service?
We have 12 month quality guarantee, We own well-trained and
passional sales & after- sale services who
can speak fluent English language
3 How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10
working days longer
4 How about the payment terms?
TT,western union,L/C,our company already joined the trade
assurance,it will highly protect your order
security.
5 How do you send the product to me,how long?
For sample,normaly send by air or express,about 3-5 days
For quantity purchase,normally by sea, it normally takes 7-60 days
depend on different countries.
6 Can you do OEM service?
We offer below OEM services:
1) We can make custom design turnstile,or you tell me your
requirements ,we can make a design for you.
2) Can print your logo on turnstiles, can customize the retail box
packing and other things.
