Brand Name : | Goldantell |
Model Number : | GAT-340 |
Certification : | CE/ROHS/FCC/IS9001 |
Price : | negotiation |
Payment Terms : | T/T ,western Union,LC,Paypal, L/C |
Supply Ability : | 2,000pcs per month |
Delivery Time : | 7 working days after received your payment |

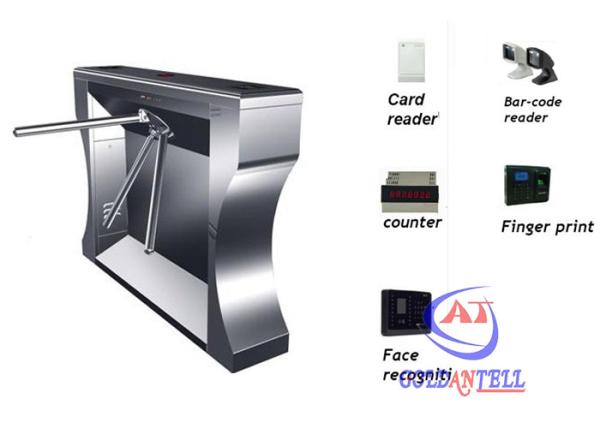

RFID automatic roller revolving speed gate turnstile In outdoor public service
Specifications:
Item | GAT-340 |
Housing material: | 304 stainless steel/316 stainless steel |
Working voltage: | AC220±10%V 50±10%HZ |
Arm length: | 550mm |
Time of opening: | 0.2 second |
Passage width: | ≤600mm |
Direction | single or bi-directional (optional) |
LED light | direction arrow |
Emergence | When power off, arm open automatically |
Drive motor | DC 24 V brush motor |
Support force of arm: | 60kg |
Input interface: | +12V level signal or pulse width>100 ms |
Features of tripod turnstile:
1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing,
save space
3. Anti-pinch by mechanism and sensor If there is block during
return of gate, motor stops working automatically. Reset again
after a default delay, the force 2Kg.
4. Anti-illegal in, anti-intrusion, auto close for reverse
direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7. uto-reset. If not go through in a preset time, pass right would
be cancelled automatically. (1-60s adjustable), default time is
10s.
8. Reset function by photocells,Anti-pinch function by photocells,
( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD
system, E-ticket system and so on.
10. One way or two way control
11. Unit can be controlled and administered by remote control
Application place :
· Supermarket
· Subway Station, Bus Station
· ,Airports
· Tourism
· Exhibition
· Theater
· Swimming Hall
· Fitness Gym
· Residence Area
· Enterprise’s Entrance and Exit Attendance
· Toll Management
