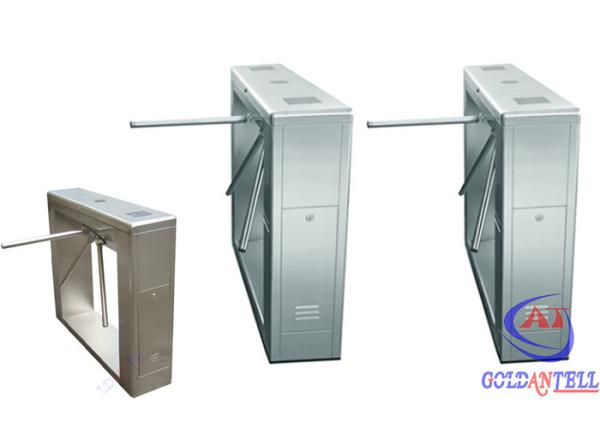

Office Building Automatic controlled access turnstiles Waist High
Technical parameters
Housing material: domestic standard 304# stainless steel
Working voltag: AC220±10%V 50±10%HZ
Size: 1200mm (L) * 280mm (W) * 990mm (H)
Arm width: 510 mm
Passage width: ≤600 mm
Communication interfac: standard RS485 interface, distance ≤1200m
Pass speed:30 persons/min
Input interfac:+12V level signal or pulse width>100ms 12V pulse,
drive current>10mA
About access control
This equipment is intergrated with mechanism,electric and
micro-controller and various kinds of identification
technologies,compatible with IC,ID,barcode,fingerprint reader and
so on ,to provide intelligent control and management to flow
control.
The feature of turnstile barrier
1 . Running stablely without noise and mechanical impact
2 . The passing person number of the persons can be set
3 . Several ways of working molds for your demand chosen
4 . Beam falling and lifting can be controlled in far distance so
to satisfy the special requirement of the users and the request of
fire protection.
5 . The electrical interface connected with various kinds of reader
and writer equipment
6 . Direction-guide lights in the turnstile to tell you whether the
direction to go or not
7 . All the functions realized in one integration machine and
controlled and managed by the computer in the far distance
8 . Bi-direction, or one direction permitted, one forbidden, or one
direction charged, one for free, and all the working molds set by
the buttons in the main control board
9 . The number of the persons passed by can be counted
automatically which can also be displayed in LED
Application
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming
Hall,Residence
Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge
Management,
The package of turnstile barrier
1 . Inside with a carton package.
2 . Outside,there are 2 kinds of packages for your choice:
crate package and closed wooden package
