Football exit 230volt electric Full Height Turnstiles price / rfid
fingerprint open gate
————————————————————————————
Site Appication
Access Width: within 900mm space, more comfortable for pedestrian
to pass through the gate.
♦ Public Places: lobby entry, Subway, Airports, Stations,Library,
Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
♦ Entertainment Places: Movie theaters, Fitness halls, Country
clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School,
Enterprise’s Entrance and Exit Attendance.
Technology parameter
| Item model | GAT-504 |
| Cabinet dimension | 1500 (L) * 1350(W) * 2300 (H) |
| Cabinet material | 304 stainless steel |
| Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Opening/closing time | 1 second |
| The lenght of three (four) arms | 51cm, can lengthen |
| Access mode | single in/out or Bidirectional |
| Optimal flow rate | 30 persons/min (open), 25-30 persons/min (closed) |
| Reset time after break down | default 10s, can be changed to fit different demands |

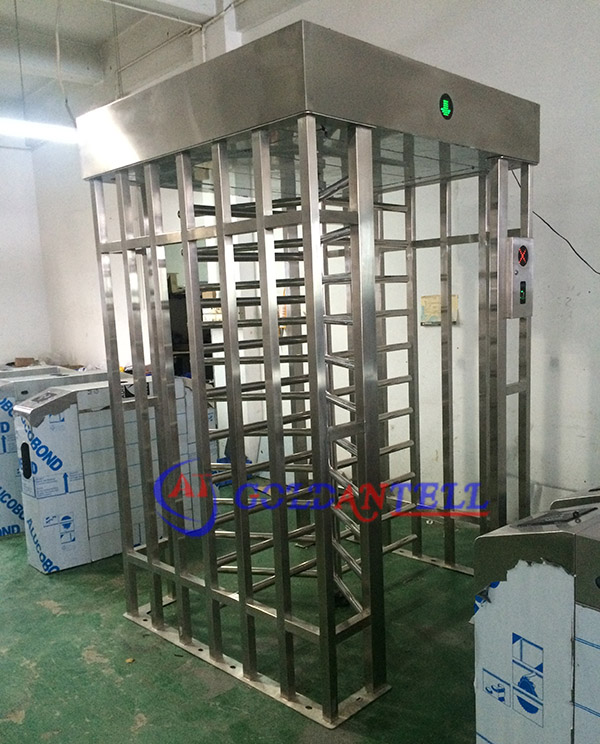

Product Display
The body is made from brushed stainless steel which creates a
seamless and elegant design. 3 arms can rotate in one or two
directions by controlled drive mechanism. in case of emergency
turnstile can be unlocked either manually or automatically. Robust
mechanism with intelligent control unit make it more reliable. It
is intensive use with sooth operation. Its unique features with
extensible functions allow it to integrate with various kinds of
access control, including rfid / fingerprint/ qr code /barcode /
ticket / ESD testing / facial recognition system.
Feature & Function
1. Reasonable reliable design, low noise, smooth operation and long
service life.
2. Standard switch signal input, convenient external switch or
barcode, IC card, fingerprint and other access controller to
control the roller gates action.
3. With multiple operating modes to choose from, you can
bi-directional card reader or fingerprint-limiting; While reader or
fingerprint, the forbidden line of the other direction; One side of
the card reader or fingerprint, and the other direction of free
passage.
4. Hydraulic shock absorbers can be freely adjusted the return of
the Turnstile.
5. Anti-recoil, pedestrians from the opposite direction into the
channel, immediately locked.
