Access Control System Automatic Over Heat Protection Boom Barrier
Gate With Long Life And Card Reader
Descriptions:
1. Characteristics: Special movement mechanism, with no gear or
belt; no need for maintenance; stable
performance and long life- span. Only 90 degree running for the
boom, to avoid the accident of 360
degree running caused by abnormal failures.
2. Main functions: This equipment is controlled in wireless method,
which makes its operation safe &
convenient. What you need to do is to connect the equipment with
220 V power supply and earth the
exterior case; then the system could start working without any wire
arrangement or matching.
Specifications:
| 1.Rail length | 1- 6 meter |
| 2.Housing color | orange / blue/ yellow / red |
| 3.Housing box material | cold rolled mild steel/stainless steel |
| 4.Rail material | Aluminum Alloy |
| 5. Motor speed | 30r/min |
| 6. MCBF | ≥5,000,000 times |
| 7. Working environments | indoor, outdoor |
| 8. Relative humidity | ≤90% no condensing |
| 9. Traffic light | optional |
| 10.Control ways | push button/remote control/access control system like charging
system or RFID card reader |
| 11. Bumping bounce back | N/A |
Usually supplied schemes:
1. Only the boom barrier gate, you can use the button or remote
controller to control it.
2. Except the product, also offer the RFID card reader control
system.
3. We offer a complete set of the tolling parking system, including
barrier gate, ballot boxes, vehicle
detector, Entrance control system main board, System special
switching power supply, parking lot system
management software with dongle , etc.
Safety notes:
1. During running, do not open the case-cover or case-door, to
avoid accident.
2. Normally, users can not change the wire layout inside barrier
gate. Please just connect the gate with
220 V power supply.
3. The power supply system should be equipped with leakage breaker
(≥10A).
4. During arm going down, do not place anything under the booms;
and no body is allowed to standing or
walking under the boom.
5. When power cuts, first, turn off the power connection; then
adjust the boom to vertical position by
turning the manual swing manually.
6. Normally, do not increase or decrease the length or weight of
the boom, to avoid losing balance. If
necessary, professional staff is required.
7. Normally, do not adjust positions of mechanical limit switch or
photo electric limit switch.
Functions and features:
1. Special movement mechanism, with no gear or belt; no need for
maintenance;stable performance and long life-span.
2. Specially-designed balance mechanism, which makes boom start
slowly, run quickly and stop slowly.
3. Avoid vibrating caused by boom’s running;
4. Only 90 degree running for the boom, to avoid the accident of
360 degree running caused by abnormal failures.
5. Specially-designed low-speed aluminum-casing motor, integrated
gearbox with low noise & quick heat-radiation;
6. Intelligent over-heat protection system for driving mechanism,
to control motor’s temperature and avoid damaging easily during
frequent usage.
7. This equipment is controlled in wireless method, which makes its
operation safe & convenient. What you need to do is to connect the
equipment with 220 V power supply and earth the exterior case; then
the system could start working without any wire arrangement or
matching.
8. The gate is equipped with multiple communication interfaces. It
could be connected with vehicle-detector, IR co-irradiator or other
accessories, to meet the safety requirement; and charging system
could also be connected to realize automatic management (optional).
Different kinds of the rod:
| 1. Plastic strips rod |  |
| 2. Telescopic/ extendable rod |
| 3. Connecting rod |
| 4. Luxury rod |

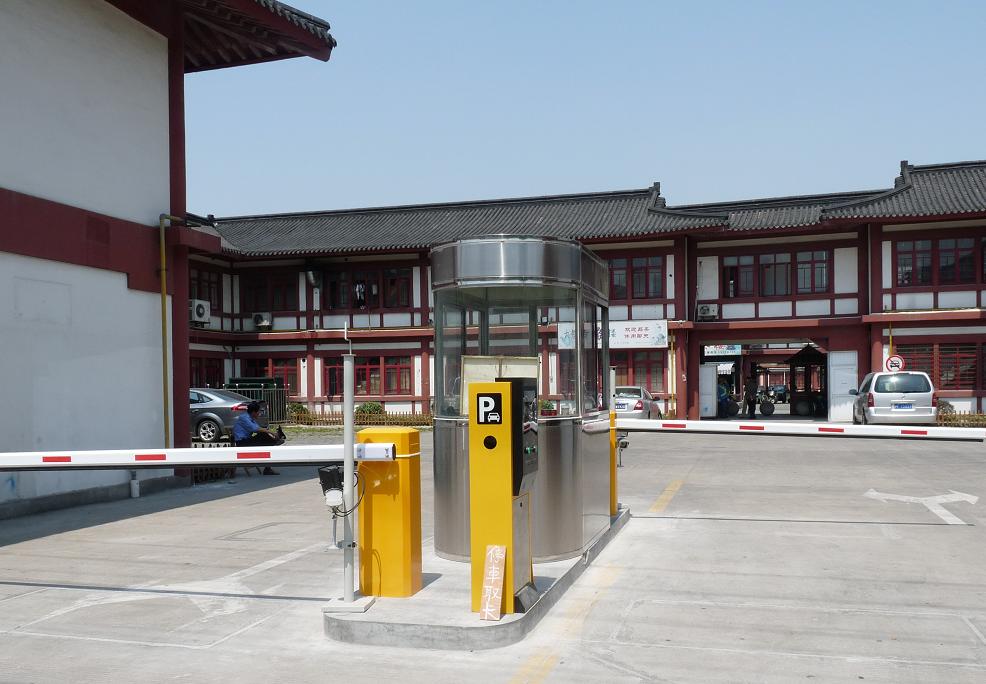

Project show:
