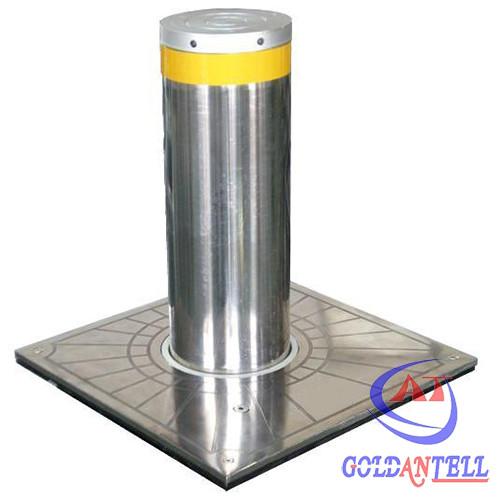

304 Stainless Steel Security Road Blocker With Hydraulic /
Automatic / Semi - Auto Folding Down Control Way
Description:
1. The product uses the hydraulic drive technology and mandatory
blocking, with load- bearing, anti-
collision capability, simple operate, flexible, hydraulic
drive,smooth motion, fast, low noise, high capacity,
secure and reliable, strong bearing capacity, smooth movements
functions and so on.
2. Road blocker can be used with barrier gates, smart card and
attendance management systems, which supporting the composition.
(According to user requests for additional)
3. The Duty issue commands through the control system, hydraulic
transmission device make the
roadblocks. rise and fall quickly, after the vehicle pass, through
the inductor to detect device automatically, or manual operate the
button to make the roadblocks movements;in order to effectively
prevent the
vehicle force pass, the Duty need to control the lane, open or
close the door.
Specifications:
| Product specification |
| Power supply | AC 110 V ~ 240 V 50 Hz |
| Storage Environment | -40 ℃ ~ 75 ℃, rain and moisture and dust |
| Color | stainless steel color, multiple colors or adding reflective tape LED (optional) |
| Material | 304 stainless steel, 316 stainless steel, carbon steel electrophoresis optional spray paint |
| Parts of Blockers | 1,Blocker Body 2,Automatic Control Board 3,Hydraulic Pressure Integration |
| Dia.of blockers | 168 mm ±2mm 219 mm ±2mm 275 mm ±2mm |
| Communication Distance | ≤1200M |
| Thickness size | thickness can be customized 6-12 mm |
| Communication Connection | RS 485 interface |
| Weight | ± 100-150 kg |
| Control(optional) | remote control, manual, card, license plate recognition and access control linkage, remote control |
| Applications | Highway Charging,Airport,Gov. Military Area,Banks,Ports&Embassy |
| System Dynamic Power(w) | 2.2KW / 380 V |
| Rising Time | 2 ~ 4S (adjustable) |
| Falling Time | 2 ~ 4S (adjustable) |
Feature and function:
1. Customized for different users requests.
2. Controller display : LCD and LED.
3. Durable,Overload,Operate Smoothly,Low Noise,Fast speed
up&down.
4. Micro control technology makes bollard work stable and
reliable,Easy integrate to other systems.
5. Compatible with road barrier,Turnstiles and other access system
control to achieve automatic control.
6. Advanced mature Hydraulic pressure technologies.

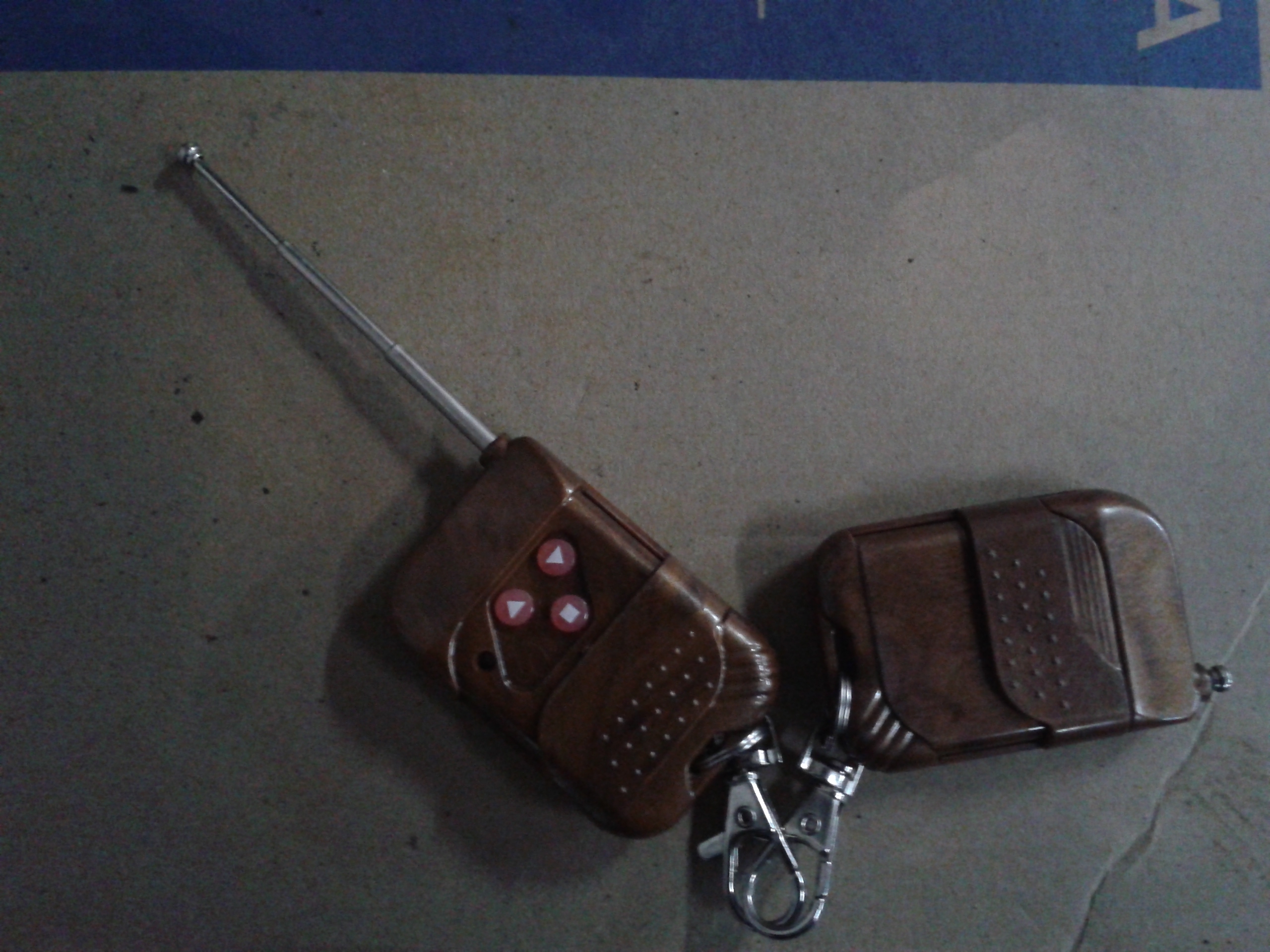

7. Remote control system realize wireless control up&down
within 30 meters range.
8. Swiping card system: built-in card reader to control bollard
up&down.
9 .Road barrier integrate with Bollard : built-in access control
realize road barrier,A/C and bollard in
one-card.
10. Connected with Computer Management OR Charging Systems.
Especially, Roadblocks can be used with barrier gates, smart card
and attendance management systems,
which supporting the composition. (According to user requests for
additional)
Classification:
According to the control ways,divided into main three different
kinds.
1. Hydraulic road blocker: with hydraulic control system.
2. Electric road blocker: with electric driven control
system,including full automatic& semi- automatic
control ways.
3. Manual control;
Application:
Road blocker are widely used in highway toll stations, checkpoints,
prisons, airports, government,
embassies, military bases, customs, bank, industrial and mining
enterprises, ports, warehouses, parking
lots and anywhere need to limit vehicle pass, etc.
Accessories show:
