Goldantell Tripod Turnstile Introduction&Specificatio
Name | Bridge Type Slope Tripod Turnstile | Item Number | GAT-307 |
Brief Introduction |
Goldantell vertical tripod turnstile made of 304 /316 stainless
steel,with nice and elegant shape,antirust,durable, Resistant to
external damage This item is widely used in station,subway,factory,office
building,intelligent community,hotel,clubs,stadium,enterprise,etc. Goldantell tripod turnstile divided into 3 kinds: 1)full automatic 2)semi-automatic 3)manual
|
Goldantell Product Picture | Technical Parameters |
| Housing material: domestic standard 304# stainless steel |
Working voltage: AC220±10%V 50±10%HZ |
Working movement: DC24V solenoid valve |
Size: 320*310*980mm |
Arm width: 510 mm |
Support force of arm: 60kg |
Passage width: ≤600 mm |
Direction: single or bi-directional (optional) |
LED light: direction arrow |
Working environment: indoor/outdoor (with a tent over) -10℃～70℃ Relative humidity: ≤90% coagulation free |
Time of opening: 0.2 second |
Pass speed: 30 persons/min |
Emergence: When power off, arm open automatically |
Normal running life: 3 million |
Communication interface: standard RS485 interface, distance ≤1200m |
Input interface: +12V level signal or pulse width>100ms 12V
pulse, drive current>10mA |
Goldantell Tripod Turnstile Standard Functions & Features |
Tripod turnstile function & Features | Fully automatic | Semi automatic | Manual operation |
1. Alarm function:when arms are pushed by force illegally, alarm
will be triggered automatically and arms will be set locked. | √ | × | × |
2. Turnstile can setting the working condition by press the button
of main control board. | √ | √ | × |
3. Auto-lift-arm function: the arm can lift automatically with
alert when the power is on again. | Auto-drop-arm | Auto-drop-arm | NO action |
4. Auto-drop-arm function: the arm can drop down automatically
(default) (or free passing) when the power is off. | Auto-lift-arm | manual- lift –arm | NO action |
5. Automatic Reset Functions: after you swap the card, during the
specific time (the system is 10s), if you didn’t pass the
turnstile, the system will cancel your authority automatically to
pass the gate, (reset time is 1~60s you can adjust it what time is
suit for you) | √ | √ | × |
6. The turnstile can work with door access control system/
consumption system /biometric recognition system/ ESD system and so
on | √ | √ | × |
7. Once an open signal is give, the arms will rotate automatically
to a certain angle, and prompt the pedestrian to pass the gate. | √ | √ | × |
8. LED indicator light | √ | √ | × |
9. When pedestrian pass the turnstile, what should they do? | Automatic-rotation | manual push the arm | manual push the arm |
10. The turnstile is bidirectional (pedestrian can enter and exit
from one set of turnstile) | √ | √ | × |
11. Can manager and long-range control the turnstile directly by
managing the computer. | √ | √ | × |
12. LED counting function | √ | √ | × |
System Integration
Integrate with visitor management system.
Integrate with ticketing system.
Integrate with access control system required by customers, and
built-in reader appointed by customer.
Integrate with Coin system.
Direction Indicator
The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized.
Application
Subway Station, Bus Station,Airports, Hoverport, Tourism
Sports,Exhibition,
Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming
Hall,Fitness Gym, Residence Area,Enterprise’s Entrance and Exit
Attendance,Gateway Guard,Toll Management,Special Access Control
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product
shape design,custom logo,custom
package
2. we can provide not only product, but also system software
management.Save your time and cost
3. Two years guarantee,and duiring one year if the parts have any
artifical damage ,we will send the parts
to you for feel
4. Friendly and professional salesman or sales girl

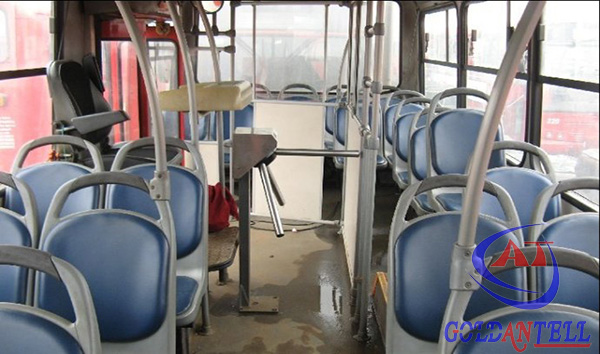

Tripod Turnstile Project
