Durable Stainless Steel Swing Barrier Gate RS485 Port Turnstile
Barrier Gate
Description:
Goldantell swing turnstile is intergrated with mechanism,electric
and micro-controller and various kinds of identification
technologies, It can carry out intelligent control and management
to the passageway through choosing various identification equipment
and adopting fair, reliable security protection, alarming equipment
and direction indicating equipment.
Classification:
- Bridge shape
- Vertical shape ( this item is the bridge shape ).
- Pillar shape
Specifications:
 | Working voltage | AC220±10%V 50±10%HZ |
| Size | 380 (L) *280 (W) * 1000 (H)(MM) |
| Passage width | 530 mm - 830 mm |
| Swing arm angle | 180 degree |
| Direction | single or bi-directional (optional) |
| Time of opening/closing | 1 second |
| Control ways | Push button, RFID card, fingerprint
recognition etc. |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Normal running life | 3 million |
| Working environment | indoor/outdoor (with a tent over)
-10℃～70℃ |
| Driving motor | DC 24 V brush motor |
Standard Function:
1. Pillar can heighten , telescopic arm lengthen, can choose
materials.
2. Infrared reset function & Infrared induction clamp function.
3. Sound and light alarm prompt functions.
4. Normally open or closed can be adjust to meet the requirements
of the different place
5. The gate is Bidirectional, according the infrared sensing to
enter and exit the passageways.
6. Turnstile can setting the working condition by press the button
of main control board.
7. Anti-pinch function: turnstile have Mechanical/ infrared
induction Anti-pinch functions( when it is meet
the hinder during the reset time, the electrical machine closed
work automatically in specified time, the
turnstile will default the delayed and reset again till reset
succeed).
8. The turnstile will lock when somebody enter the gate illegal,
Tailgating or break into negative direction
gate.
9. Before received the open signal, the turnstile will lock
automatically.
10. The arm have the collision avoidance function: when the
turnstile arm closed, if it is under the collision,
the arm will open to protect the Transmission of inner machine.
11. Automatic Reset Functions: after you swap the card, during the
specific time (the system is 10s), if
you didn’t pass the turnstile, the system will cancel your
authority automatically to pass the gate, (reset
time is 1~60s you can adjust it what time is suit for you). totally
meet the fire protection needs.
12. The turnstile can work with door access control system/
consumption system /biometric recognition
system/ ESD system and so on.
13. The turnstile is bidirectional (pedestrian can enter and exit
from one pair of turnstiles).
14. Can manager and long-range control the turnstile directly by
managing the computer.
Application:
1. Public Places: Subway, Airports, Stations,Library, Bookstores,
Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Entertainment Places: Movie theaters, Fitness halls, Country
clubs, Fairground, Clubs,Swimming Hall,
Fitness Gym.
3. Business Organizations:
Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance
and Exit
Attendance.
Package:
1. With access control system, need the closed wooden case packing. |  |
2. Without the access control system, two ways for your choice:
crate and closed wooden box. |
Project show:

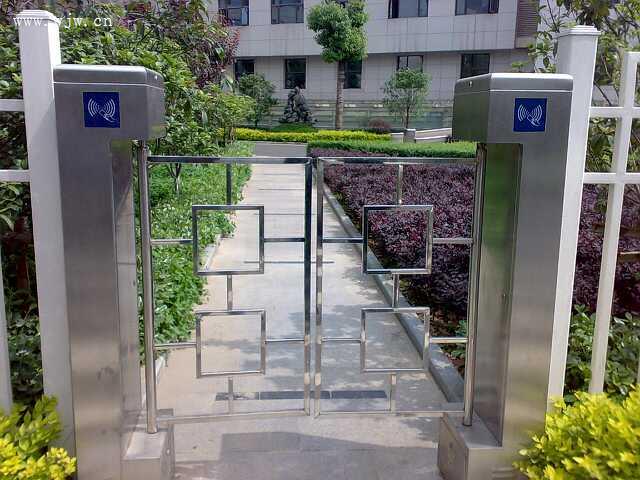

- Used at the entrance of the School, Apartments,Residence Area
Competitive Advantage:
1.All items have 24 month quality guarantee.
2.Custom design shape and logo ,for large amount, custom logo
available for free.
3.Fast delivery.
4.Supported by professional engineers.
5.Special discount of our distributors or agents in their area.
6.Packing in standard export carton, suggest you pack it by wooden
case to protect the products.
7. CE, ROSH available.
Appearance, Dimension, Material & Surface Finish
1. Appearance: customized according to customer’s requirement.
2. stainless steel thickness of the cabinet: customized within
1.2~2.0mm.
3. Material of the cabinet: 304 / 316 grade stainless steel.
4. Surface finish of the cabinet: satin finish / polishing / anti-
fingerprint/frosted finish / electroplating /
baking finish.
