LED Indicator Light Single Motor Flap Barrier Turnstile 220v / 110v
Power Supply
Goldantell Flap Turnstile Introduction&Specification :
Name | Bridge type flap barrier gate | Item Number | GAT-211 |
Brief Introduction of Goldantell Flap Turnstile |
Goldantell smart flap turnstile is s a high-tech product which
mainly provides intelligent management to passageway. It is a
upgrade product of intelligent tripod turnstile and swing barrier.
This product is finely processed with complete functions and high
level, suitable for high-level neighborhoods, intelligent
buildings, hotel, subway, port and club,etc.
Classified into two kinds :
single motor (suitable for single passageway and multiple
passageway) .
Double motors (suitable for multiple passageways) . |

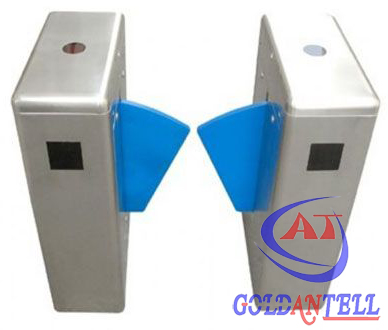

Goldantell Product Picture | Technical Parameters |
| Housing material: domestic standard 304# stainless steel |
Working voltage: AC220±10%V 50±10%HZ |
Working movement: DC24V solenoid valve |
Size: 1200mm /1400mm(L) * 280mm (W) * 980mm (H) |
Retractable arm length: 260 mm |
Passage width: ≤600 mm |
Direction: single or bi-directional (optional) |
LED light: direction arrow |
Working environment: indoor/outdoor (with a tent over) -10℃～70℃ Relative humidity: ≤90% coagulation free |
Time of opening: 0.6 second |
Pass speed: 40 persons/min (open), 25-30 persons/min (closed) |
Reset time after break down: 10 seconds |
Normal running life: 3 million |
Communication interface: standard RS485 interface, distance ≤1200m |
Input interface: +12V level signal or pulse width>100ms 12V
pulse, drive current>10mA |
Input interface: +12V level signal or pulse width>100ms 12V
pulse, drive current>10mA |
Standard function&future |
1. Alarm function
2. Anti-pinch function
3. Automatic Reset Functions
4. Infrared reset function & Infrared induction clamp function
(Optional:3 pairs or 5 pairs Infrared)
5. Turnstile can setting the working condition by press the button of
main control board.
6.This model is newest second generation of movement (mute), soft
baffle (PU mold)
7. The turnstile can work with door access control system/
consumption system /biometric
recognition system/ ESD system and so on
8.The turnstile is bidirectional (pedestrian can enter and exit from
one pair of turnstiles |
Extended functions |
1.LED indicator light
2.Box house can lengthen, telescopic arm color can choose
3.Infrared logical judgment function (you can choose 7 pairs or 9
pairs Infrared)
4.Voice Prompt Function
5. Normally open or closed can be adjust to meet the requirements
of the different place
6.Sound and light alarm prompt functions |
System Integration :
Integrate with access control system required by customers, and
built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system.
Application :
Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism
Sports,Exhibition,
Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming
Hall,Fitness Gym,
Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway
Guard,Toll Management,Special
Access Control.
Competitive Advantage :
1. More than 10 years powerful ODM/OEM ability,could make product
shape design,custom logo,custom
package
2. we can provide not only product, but also system software
management.Save your time and cost
3. Special service from Goldantell
For repairing,no need you return back product,only need you take a
video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by
fastest express,you no need bear any
fee.
4. Friendly and professional customer service people help you in 16
hours.

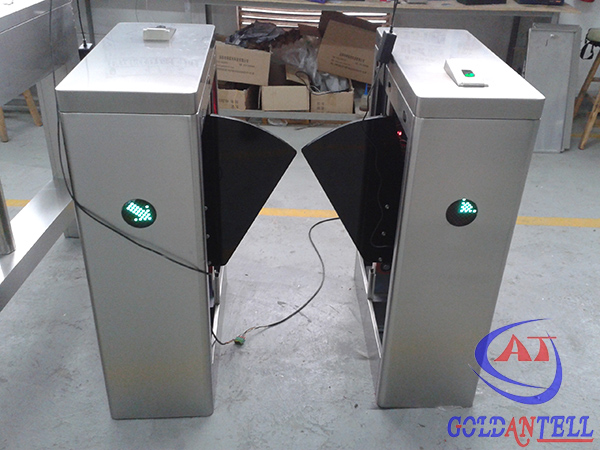

Goldantell Technology Flap Turnstile Factory Showing
