Biometric Fingerprint RFID Turnstile Office Building Glass
Turnstile Door
High Secure Office Building Glass Turnstile Doors Electronic
Biometric Fingerprint Safe Entry Barrier Gate
Description Of Glass Turnstile Doors
1) Flap barrier gate can be integrated with access control system
like facial recognition for staff, provide civilized orderly access
methods.
2) ESD equipment can be quickly tested, and three independent
devices (Left Shoes, Right Shoes, Wrist Strap) be completely ESD
tested at one time.
3) LCD screen: optional, supply more options for system
requirement.
4) Single core (movement) structure or dual core (double movement)
structure is equipped for different installation requirements.
5) Higher flow rate and better anti-tailgate functions.
6) Double protections of Mechanical and infrared anti-pinch
function, providing more reliable and safer passing.
Specifications Of Glass Turnstile Doors
| Item | ( single motor ), OR ( double motors ) |
| Name | Bridge type flap turnstile |
| Size: | 1200mm (L) * 200mm (W) * 1000mm (H) |
Retractable arm length: | 260 mm |
| Pass speed: | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage width: | ≤600mm |
| Normal running life: | 3 million |
| Time of opening/closing: | 0.6 second |
Time to work after power on: | 3 seconds |
Reset time after break down: | 10 seconds |
| Direction: | single or bi-directional (optional) |
| Drive motor: | DC 24 V brush motor |
| Working environment: | indoor/outdoor (with a tent over) -10℃～70℃ |
Communication interface: | standard RS 485 interface, distance ≤1200m |
| Input interface: | +12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA |
| Relative humidity: | ≤90% coagulation free |
| Housing material: | domestic standard 304 # stainless steel |
| Working voltage: | AC220±10%V 50±10%HZ |
Function& features Of Glass Turnstile Doors
1. Infrared reset function (Optional:4 pairs or 6 pairs Infrared).
Infrared induction clamp function.
2. The turnstile is bidirectional (pedestrian can enter and exit
from one pair of turnstiles).
3. Real time trouble self-detect and alarm indication, ensuring
system safe operation and facilitating maintenance and operation
4. To select a reasonable normally open or close mode, to divert
the flow of passengers effectively.
5. Setting function humanized for reset of over time passing.
6. Can manager and long-range control the turnstile directly by
managing the computer.
7. Flashing light prompt function: it is convenient to find the
turnstile problem by administrative staff.

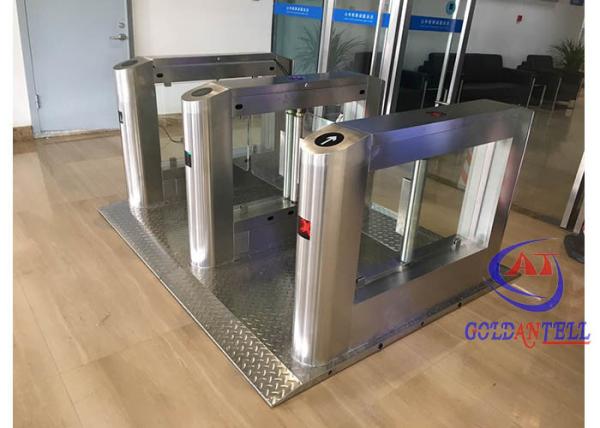

Product Photos Of Glass Turnstile Doors
Project Of Glass Turnstile Doors
- Movie theaters,
- Fitness halls,
- Country clubs,
- Fairground,
- Clubs,
- Swimming Hall,
- Fitness Gym.
- Hotel,
- Factory,
- Bank,
- Hospital,
- School
FAQ Of Glass Turnstile Doors
1) How about your package?
Vivian: Seaworthy wooden case + Foam.
2) How about the payment method?
Vivian: Standard products: 50% deposit, 50% balance payment before
shipment.
3) How about the lead time?
Vivian: Regular products need 5-8 working days. The customized
products need 9-13 working days.
Service Of Glass Turnstile Doors
1. Friendly and professional customer service people help you in 16
hours.
2. More than 10 years powerful ODM/OEM ability,could make product
shape design,custom logo,custom package.
3. We can provide not only product, but also system software
management.Save your time and cost.
4. Special service from Goldantell: For repairing,no need you
return back product,only need you take a video,our engineer will
instruct you,if spare parts was damaged in 1 year,we will send you
spare parts by fastest express,you no need bear any fee.
Advantage Of Glass Turnstile Doors
1. Security solution provider, can help you save time and costs.
2. Good quality with competitive price, offer OEM and ODM service.
3. Professional technical supports and great after-sales service.
4. Custom design shape and logo,for large amount, custom logo
available for free.
5. Fastest delivery and safe shipping way.
6. Warranty: One year Warranty, from the date of delivery, a
lifetime technical support.
7. Feedback quickly: 24 hours online service and reply your inquiry
within 8 hours.We could provide Online supports for you when need
supports on testing.
Access Control Ways Of Glass Turnstile Doors
1. we can offer the access control system: fingerprint/ face
recognition/ card reader/ QR code/ barcode ticket system.
2. support special function: counter, coin- operation.
3. ESD tester system and function.
