Anti-tailing Face recognition Controlled Access Turnstiles / Low
noise Waterpark Security Pedestrian Pass Door
Description Of Controlled Access Turnstiles
◊ LED indicator light: green and red indicate the passing
information.
◊ Glass panel slides open horizontally to provide an unobstructed
passageway.
◊ Safety: Gate auto open when power is off to meet the fire
protection requirements.
◊ Custom: we can make a visible high glass panel that prevents a user from climbing over
the gate to gain unauthorized access.
Technical Data Of Controlled Access Turnstiles
| Cabinet dimension | 1400 (L) x 120 (W) x 1000 (H) mm |
| Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Flap opening/closing time | 0.6s |
| Stretching-out flap length | 285 mm |
| Access mode | single in/out or Bidirectional |
| Optimal flow rate | 40 persons/min (open), 25-30 persons/min (closed) |
| Reset time after break down | default 10s,can be changed to fit different demands |
Features Of Controlled Access Turnstiles
1. Various control functions: external button, remote control, bar
code, IC or ID, etc.
2. Check the following function: when the first person swipes the
card, the second person doesn't swipe the card and the device will
alarm.
3.The bicycle delay function: prevent the gate from hitting the
bicycle;
4.Various control functions: by set the setting, the brake machine
can be set at special time to the regular open mode, which
satisfies a large number of people.
Functions Of Controlled Access Turnstiles
◊ Smart card reader compatible with a variety of card such as IC and
ID card.
◊ LED gate direction indicator that displays the current operational
state to pedestrian. Green arrow for entry free, Red cross for
passage locked.
◊ Can be expanded to automatic identification system, realizing
function of access control, pedestrian flow control,attendance
check or fare collection.
◊ Equipped with a couple of infrared photocell, alarm at
unauthorized entry or tailgating attempts, together with
anti-strike function to protect pedestrian.
◊ Equipped with international standard electrical interface, can be
easily integrated with other R/W device, also can be controlled and
management through remote supervision computer.
Different Shape Of Controlled Access Turnstiles
Vertical shape
Bridge shape:this model
Pillar shape (or tube type)
Single motor and Double motor: single motor (suitable for single
passageway and multiple passageway); Double motors (suitable for
multiple passageways)
Service Of Controlled Access Turnstiles
1. Security solution provider, can help you save time and costs.
2. Good quality with competitive price, offer OEM and ODM service.
3. Professional technical supports and great after-sales service.
4. Custom design shape and logo,for large amount, custom logo
available for free.
5. Fastest delivery and safe shipping way.
6. Warranty: One year Warranty, from the date of delivery, a
lifetime technical support.
7. Feedback quickly: 24 hours online service and reply your inquiry
within 8 hours.We could provide Online supports for you when need
supports on testing.
Application Of Controlled Access Turnstiles
Exhibition halls,
Commercial buildings.
Parks,
Offices,
Stadium,
Library,
Museums

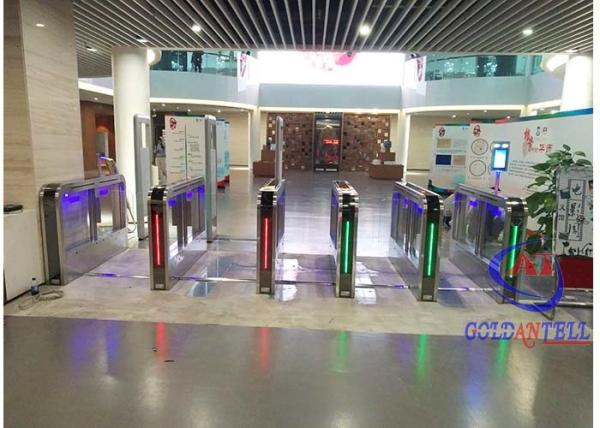

Photo Of Controlled Access Turnstiles
Packing Of Controlled Access Turnstiles
1. Exported product: Wooden case package of Export exempted from
inspection plus pearl wool and plastic wrap
2. Domestic: Bubble wrap plus carton or pearl wool plus wooden
packaging.
3. To better ensure the safety of your goods, professional,
environmentally friendly, convenient and efficient packaging
services will be provided.
