    Lab / Factory Esd Turnstile 8 Inch LCD Monitor Built In Computer

    Ask Lasest Price
    Brand Name : Goldantell
    Model Number : GAT-ESD305
    Certification : CE certificated
    Price : negotiation
    Payment Terms : T/T ,western Union,LC,Paypal, D/P, D/A, D/P
    Supply Ability : 2,000pcs per month
    Delivery Time : 3-6 working days after received your payment
    • Product Details
    • Company Profile

    Lab / Factory Esd Turnstile 8 Inch LCD Monitor Built In Computer

    Lab / Factory Esd Turnstile 8 Inch LCD Monitor Built In Computer


    Human Body Static ESD Tester Descriptions

    1. Item model: GAT-ESD305
    2. It can stand and work alone, or be built into different styles of Channel turnstile gates like a Swing barrier, Flap barrier or tripod door.
    3. A 8 inch LCD monitor, display all info of users, like photo, name, card ID,depart, entry time,etc.
    4. Software: available.

    5. Test Range and Accuracy (The upper and lower limit values of the test range can be adjusted according to customer requirements)

    Left shoe setting 0.01-1000MΩ,Accuracy ±5%
    Right shoe setting 0.01-1000MΩ,Accuracy ±5%
    Wrist-strap setting 0.1-35MΩ,Accuracy ±5%

    6. Application: This product can work with electric door or intelligent turnstile gates in the air shower. It meets the standards of other countries.
    7. Automatically store records and ESD test data (except client mode), recording information up to 100,000 or more.


    GAT-ESD305 ESD Tester Parameter

    1Instrument Dimensions8 inch LCD monitor:
    2pedal size(W) 400mmx (L) 420mmx (H) 20mm
    3Operating voltageinput AC220V output DC12V
    4Working hoursunlimited
    5Environmental conditionsHumidity: 0%~90%, Temperature: 5C°~ 40°C
    6Software

    Built in computer installed with time attendance software

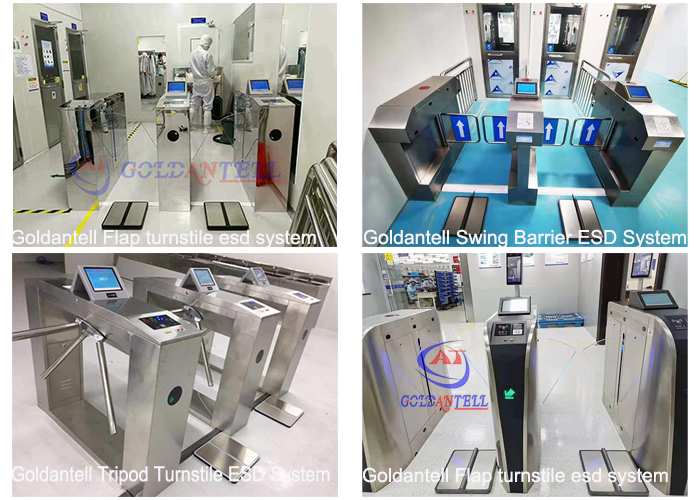

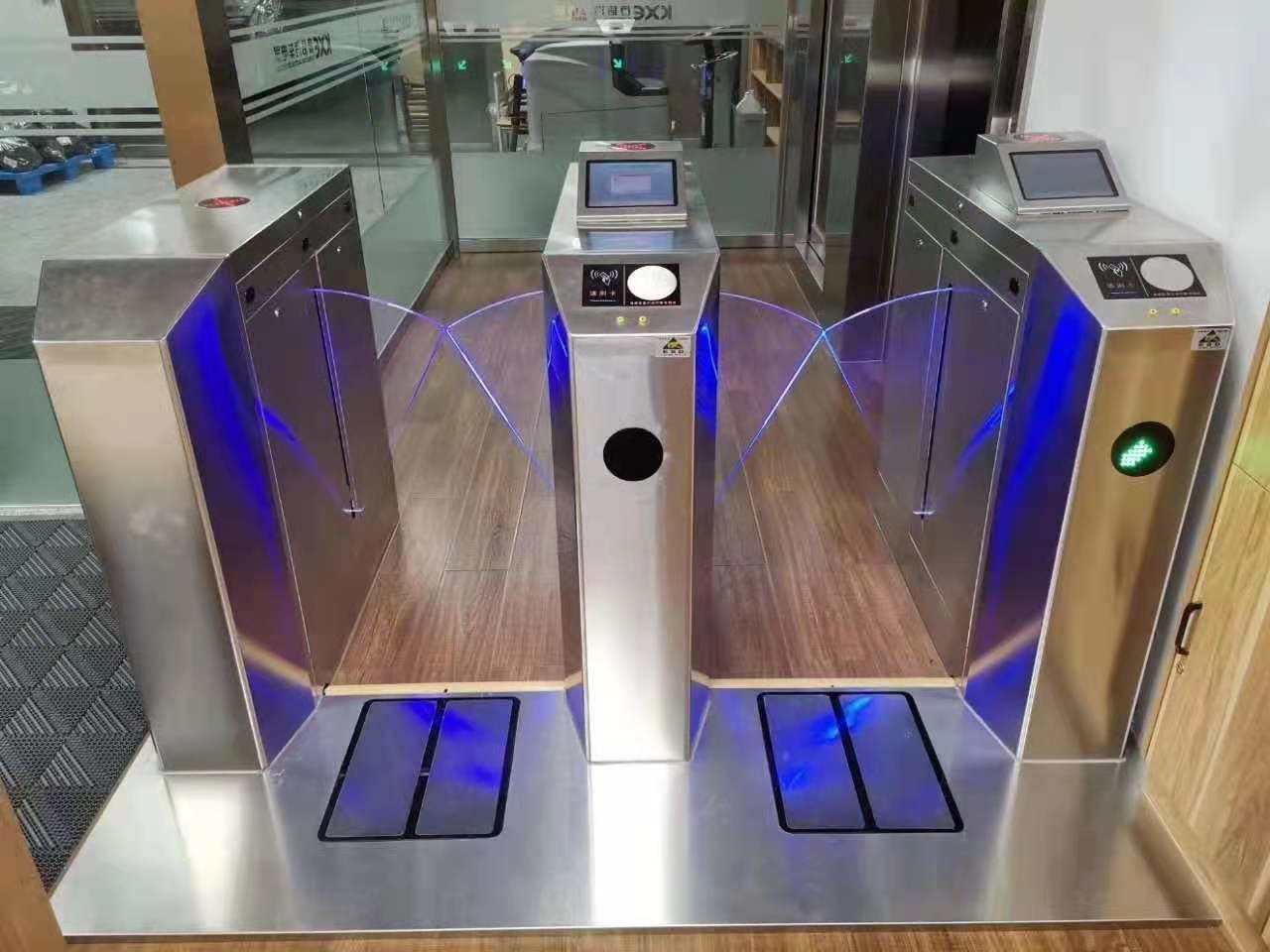

    ESD Turnstile Gate Product Photos


    Lab / Factory Esd Turnstile 8 Inch LCD Monitor Built In Computer






    Working mode Instruction

    ① Simultaneously detect hands and feet. This mode is suitable for line operators;
    ② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;
    ③ Only detect the hand, this mode is suitable for assembly line or logistics;
    ④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.



    Package:inside carton,outside crate package or closed wooden package
    Lab / Factory Esd Turnstile 8 Inch LCD Monitor Built In Computer
