304 Stainless Steel Esd Pedestrian Turnstile Intelligent Barrier
Gate
304 Stainless Steel Esd Barrier Turnstile Intelligent Pedestrian
Path Control Barrier Gate
Human Body Static ESD Tester Descriptions
1. Item model: GAT-ESD305
2. It can stand and work alone, or be built into different styles
of Channel turnstile gates like a Swing barrier, Flap barrier or tripod door.
3. A 8 inch LCD monitor, display all info of users, like photo,
name, card ID,depart, entry time,etc.
4. Software: available.
5. Test Range and Accuracy (The upper and lower limit values of the
test range can be adjusted according to customer requirements)
Left shoe setting 0.01-1000MΩ,Accuracy ±5%
Right shoe setting 0.01-1000MΩ,Accuracy ±5%
Wrist-strap setting 0.1-35MΩ,Accuracy ±5%
6. Application: This product can work with electric door or
intelligent turnstile gates in the air shower. It meets the
standards of other countries.
7. Automatically store records and ESD test data (except client
mode), recording information up to 100,000 or more
The set of system accessories are as follows:
1. Test system software
2. Tester body and foot pedal
3. 12VDC switching power supply (220V input)
4. Product description
5. Install the connection cable
Please: Do not wear gloves or press the metal test button with your
fingernail, and keep the pedal dry and
clean..

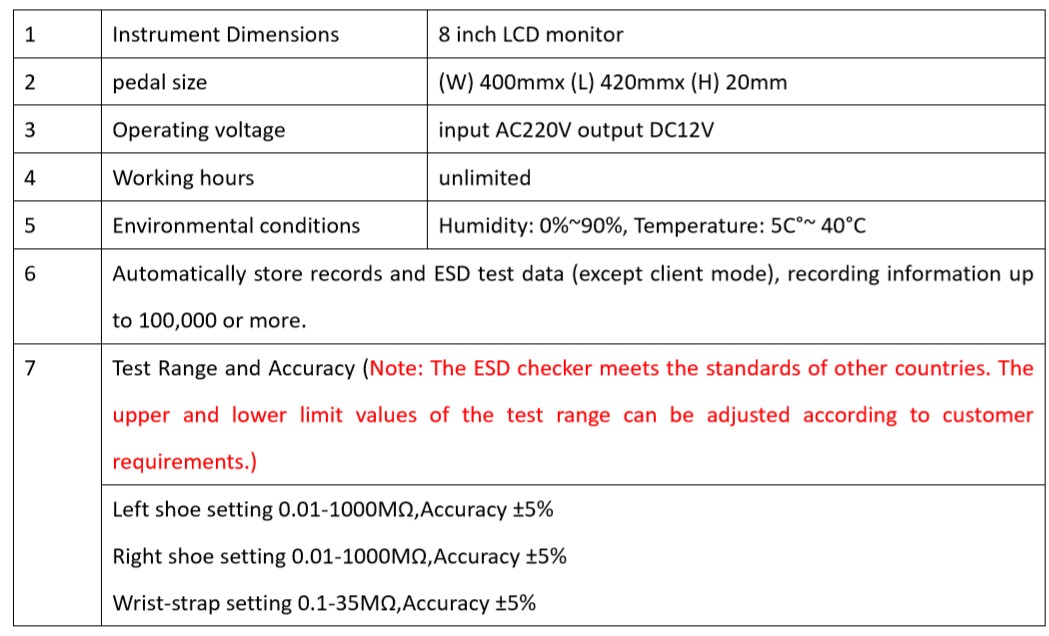

GAT-ESD305 ESD Tester Parameter
Turnstile Gate Parameter
| 1 | Power | AC220C±10V,50HZ |
| 2 | Operating temperature | -15°C--75°C |
| 3 | Relative Humidity | ≤95%, No Condensation |
| 4 | Arm length | 51cm |
| 5 | Passing Speed | 30~40 persons/min(IC Card) |
| 6 | Motor | 0.5NM/24V(Fully Automatic) |
| 7 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V |
| 8 | Communication Connection | RS485 Communication Module Standard. |
| 9 | Material | SUS304,thickness is no less than 1.3mm |
| 10 | Protection Grade | IP54 |
| 11 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
| 12 | Operation Place | Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming
Hall,Residence Area,Enterprise’s Entrance and Exit
Attendance,Gateway Guard,Charge Management,Special Access Control |

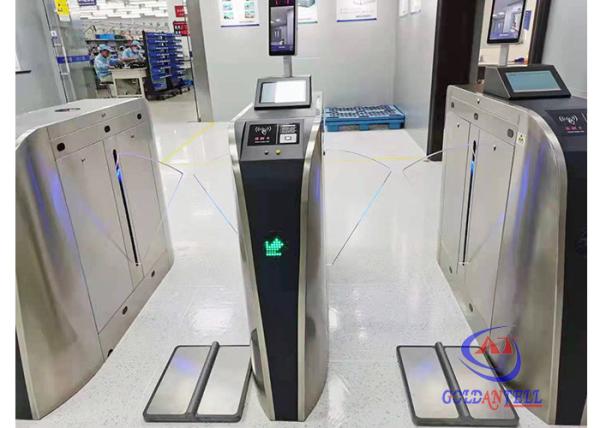

ESD Turnstile Product Photos
Working mode Instruction
① Simultaneously detect hands and feet. This mode is suitable for
line operators;
② Only detect the feet, this mode is suitable for those who need to
enter the workshop, but do not directly contact the product such as
QC, warehouse manager, etc.;
③ Only detect the hand, this mode is suitable for assembly line or
logistics;
④ Free test card, applicable to the boss/customer inspection
workshop, passing directly via swiping card.
FAQ:
1- Are you factory or trading company?
Goldantell:We are a source factory with 14 years experiences in
this line.
2- Can you do OEM service?
Goldantell:Sure,OEM and ODM are our strengths.
3- Can I purchase the ESD system without gate?
Goldantell:Sure,you can purchase ESD system only,there are 2 kinds
options:
01-to mounted on wall type
02-the ESD system built in a 1 meter height vertical box type.
4- What is the leading time?
Goldantell:Our leading time for samples 3-5 working days,for bulk
order like 100-500 sets,
about 20-35 working days.
5- What is the delivery way?
Goldantell:By express,by air or by sea.
