8 Inches 304 Stainless Steel ESD Gate Access Control ESD Tester Gate

Ask Lasest Price
Brand Name :	Goldantell
Model Number :	GAT-ESD305
Certification :	CE certificated
Price :	negotiation
Payment Terms :	T/T ,western Union,LC,Paypal, D/P, D/A, D/P，Credit Card
Supply Ability :	2,000pcs per month
Delivery Time :	3-6 working days after received your payment

Add to Cart

Product Details
Company Profile

8 Inches 304 Stainless Steel ESD Gate Access Control ESD Tester Gate

8 inches 304 Stainless Steel ESD Gate Access Control ESD Tester Gate

High Quality Esd Turnstile Gate System Human Body Comprehensive Wristband & Foot Pedal ESD Tester Gate

GAT-ESD305 ESD Tester Parameter

1	Instrument Dimensions	8 inch LCD monitor: display all info of users, like photo, name, card ID,depart, entry time,etc.
2	Operating voltage	input AC220V output DC12V
3	Pedal size	W 400 x L 420 x H 20 (mm)
4	Working hours	unlimited
5	Environmental conditions	Humidity: 0%~90%, Temperature: 5C°~ 40°C
6	Automatically store records and ESD test data (except client mode), recording information up to 100,000 or more.
7	Test Range and Accuracy (Note: The ESD checker meets the standards of other countries. The upper and lower limit values of the test range can be adjusted according to customer requirements.)
7	Left shoe setting 0.01-1000MΩ,Accuracy ±5% Right shoe setting 0.01-1000MΩ,Accuracy ±5% Wrist-strap setting 0.1-35MΩ,Accuracy ±5%
8	With industrial computer(sql&software installed)

Human Body ESD tester has 4 modes to choose from:① Simultaneously detect hands and feet. This mode is suitable for
line operators;
② Only detect the feet, this mode is suitable for those who need to
enter the workshop, but do not directly contact the product such as
QC, warehouse manager, etc.;
③ Free test card, applicable to the boss/customer inspection
workshop, passing directly via swiping card.
④ Only detect the hand, this mode is suitable for assembly line or
logistics;
Pls note: The above modes do not need to be switched manually, all can be
set in the software, reading card automatically recognizes the
employee's authority, the company can set different test card
permissions according to different test requirements

Turnstile Gate Parameter

1	Power	AC220C±10V,50HZ
2	Operating temperature	-15°C--75°C
3	Relative Humidity	≤95%, No Condensation
4	Arm length	51cm
5	Passing Speed	30~40 persons/min(IC Card)
6	Motor	0.5NM/24V(Fully Automatic)
7	Input Connection	+12V Level Signal or Pulse Wide>100ms DC12V
8	Communication Connection	RS485 Communication Module Standard.
9	Material	SUS304,thickness is no less than 1.3mm
10	Protection Grade	IP54
11	Colour	SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional)
12	Operation Place	Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control

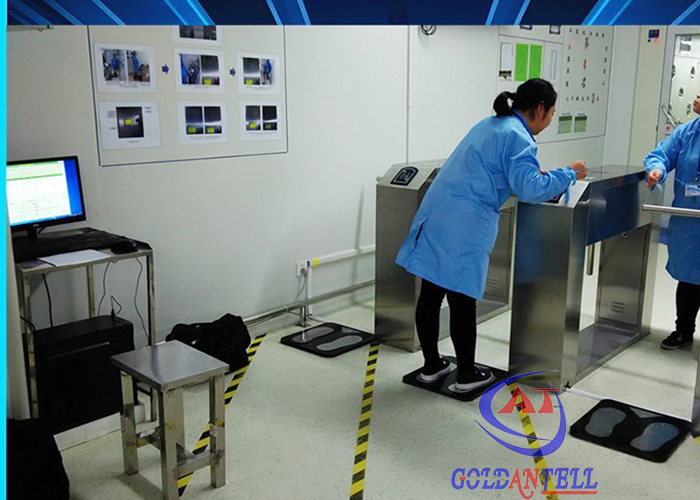

Goldantell Esd Turnstile Gate System Used in Factory

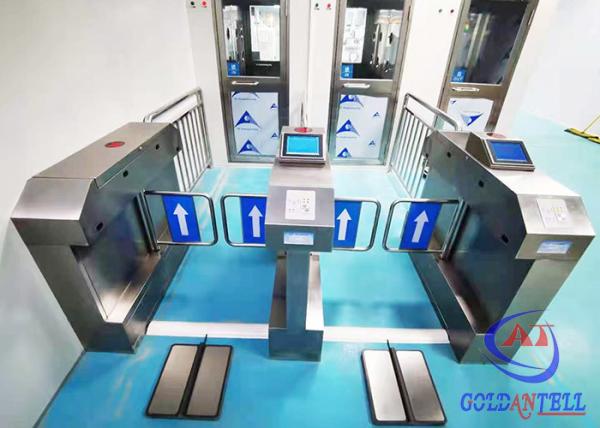

Goldantell Esd Turnstile Gate System Used in Lab

Working mode Instruction

① Simultaneously detect hands and feet. This mode is suitable for line operators;

② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;

③ Only detect the hand, this mode is suitable for assembly line or logistics;

④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.

Goldantell factory & clients
