Time Attendance Full Automatic management zone turnstile 90CM wide
passing for Security
Brief Description

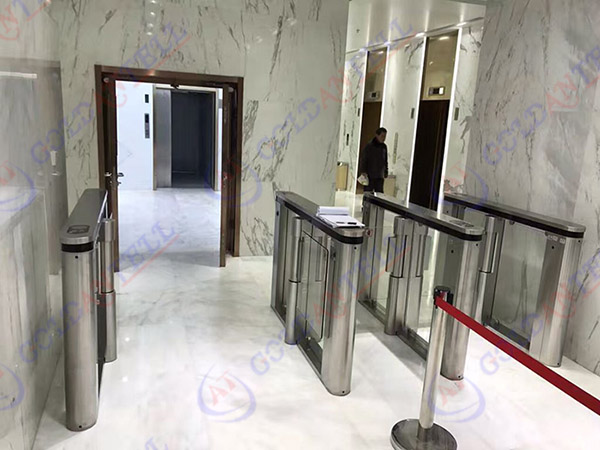

It is a upgrade product of intelligent flap turnstile and swing
barrier.It has high glass panel that prevent user from climbing
over the gate to gain unauthorized access. Glass panel slides open
horizontally to provide unobstructed passage way.It is finely
processed with complete functions and high security level, suitable
for high-level neighborhoods, commercial building, hotel, subway
and club,etc.Its stylish design can easily fit into any modern
contemporary building.
Technical specification
| Item NO. | GAT-667 |
| Cabinet dimension | 1400 (L) x 200 (W) x 1000 (H) mm |
| Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Flap opening/closing time | 0.6s |
| Stretching-out flap length | 285 mm |
| Access mode | single in/out or Bidirectional |
| Optimal flow rate | 40 persons/min (open), 25-30 persons/min (closed) |
| Reset time after break down | default 10s,can be changed to fit different demands |
Security Features
◊ Smart card reader compatible with a variety of card such as IC and
ID card.
◊ Can be expanded to automatic identification system, realizing
function of access control, pedestrian flow control,attendance
check or fare collection.
◊ Equipped with international standard electrical interface, can be
easily integrated with other R/W device, also can be controlled and
management through remote supervision computer
◊ Equipped with a couple of infrared photocell, alarm at
unauthorized entry or tailgating attempts, together with
anti-strike function to protect pedestrian
◊ LED gate direction indicator that displays the current operational
state to pedestrian. Green arrow for entry free, Red cross for
passage locked.
◊ Can open the turnstile by two input signals (signal can be input
by access controller, button or other equipments)
◊ Provide audible sound prompt and information display function.
◊ The flaps will open automatically during power interruption, and
recover N/C mode after poweron(optional)
Our Service
1. Security solution provider, can help you save time and costs.
2 .Good quality with competitive price, offer OEM and ODM service.
3. Professional technical supports and great after-sales service.
4. Custom design shape and logo,for large amount, custom logo
available for free.
5. Fastest delivery and safe shipping way.
6. Warranty: One year Warranty, from the date of delivery, a
lifetime technical support.
7. Feedback quickly: 24 hours online service and reply your inquiry
within 8 hours.We could provide Online supports for you when need
supports on testing.
