100mm Wide Slim Design Fast Passage Automatic Swing Turnstile Barrier RFID reader for lobby

Product Description

1. Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.

2. Its sleek design and smaller footprint make it compatible with any upscale business or institutional environment.

3. Prevent illegal in and out. Arms off in emergency case.

4. The turnstile combines slim line styling with one of the industry's widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation.

5. It has a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that rapid down rod control may be realized in an emergency.

Technology Parameters

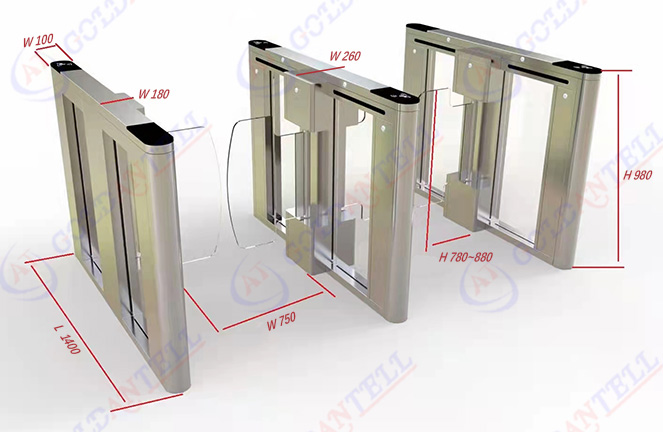

Size	1400mm (L) * 100mm (W) * 980mm (H)
Working voltage	AC110/220±10%V , 50±10%HZ
Working environment	Indoor / Outdoor (Shelter)
Operation Temperature	-10 °C – 70 °C
Passage width	750 mm (or customized 600~900 mm)
Time of opening	0.2 second
Pass speed	40-35 persons/min
Emergence	When power off, arms open automatically
LED light	optional, direction arrow
Direction	single or bi-directional (optional)
Relative humidity	≤90% coagulation free
Communication interface	standard RS485 interface, distance ≤1200m
Housing material	domestic standard 304# stainless steel
Input interface	+12V level signal or pulse width>100ms 12V pulse, drive current>10mA

Feature & Function

1. The whole system runs smoothly, long-life performance, high operation dependability and fast response.

2. Alarm function, in case of illegal intrusion and reverse intrusion.

3. Infrared sensor to prevent pinch pedestrians.

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.

Details Photos

FAQ

Q: Are you a factory or trading company?

A: We are a factory located in Shenzhen, Guangdong province.

Inner Component

♦ Ticket control panel (specially supplied for QR code control system)

♦ Ticket control panel

♦ Main board of turnstile

Application Location

♦ Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.

♦ Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.

♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
