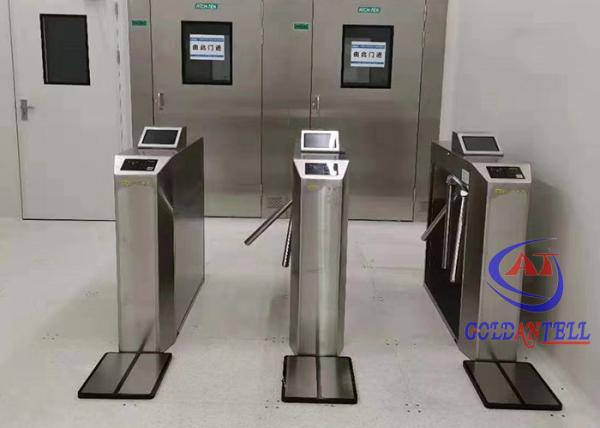

Three Passageaways ESD Electric Tripod Turnstile Portable 3 Arm
Turnstile Gate For Workshop
Product Introduction
1. Standard features: Made of 304 /316 stainless steel, Goldantell
tripod turnstile with nice and elegant shape, anti-rust,durable,
Resistant to external damage.
2. Standard Functions: Rectangular box and brake lever to be a
passage,provide orderly passage to people. Prevent illegal in and
out.Arms off in emergency case.
3. Application place: This item is widely used in
station,pier,subway,factory,office building,intelligent
community, hotel, clubs, enterprise, etc.
4. Classification: 1) full automatic 2) semi-automatic 3) manual,
the semi-automatic is the most widely used.
Technology Parameter Of GAT-ESD305 Tester System
Features: It can be used to save data online, with signal output, 8
inch display monitor, included related software, tester and voice
prompts (additional), and employee card access control.
1. ESD equipment can be quickly tested, and three independent
devices (Left Shoes, Right Shoes, Wrist Strap) be completely ESD
tested at one time.
2. Just install SQL Server2000/2008 and run the access control
management software system on any computer in your company.
3. Through TCP/IP communication technology, you can connect 255
human body comprehensive testing equipment (255 sets of Flap
Turnstile / Tripod Turnstiles or other types).
To monitor employees' compliance with anti-static requirements in
real time.
Feature & Function
-Low noise, no mechanical impact
-Single directional or Bi-directional
-High operation with quick response
-Excellent design, with high quality
-Robust, rigid , anti-rust and durable
-Smoothly working system
-Self-test function
Added function
-Counting function available (counter)
-Information display option (LCD display screen)
-Audible sound prompt
-Invalid entering alarm
-Auto-lift-arm function (full automatically type)
Technology parameter
| Optimal flow rate | 30 persons/min (open), 25-30 persons/min (closed) |
| Cabinet dimension | 1200(L)* 280(W)* 1000(H)MM |
| Open type | push button/ access control |
| Passing direction | single in/out or Bidirectional |
| Working temperature | -15°C +75°C |
| communication with computer | standard RS485, TCP/IP |
| Reset time after break down | default 10s,can be changed to fit different demands |
ESD tester system (which could be mount on turnstile gate) has 4 modes to choose from
① Simultaneously detect hands and feet. This mode is suitable for
line operators;
② Only detect the feet, this mode is suitable for those who need to
enter the workshop, but do not directly contact the product such as
QC, warehouse manager, etc.;
③ Only detect the hand, this mode is suitable for assembly line or
logistics;
④ Free test card, applicable to the boss/customer inspection
workshop, passing directly via swiping card.
Pls note: The above modes do not need to be switched manually, all can be
set in the software, reading card automatically recognizes the
employee's authority, the company can set different test card
permissions according to different test requirements.
Product Display
♦ Public Places: lobby entry, Subway, Airports, Stations,Library,
Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
♦ Entertainment Places: Movie theaters, Fitness halls, Country
clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School,
Enterprise’s Entrance and Exit Attendance.
