Train Turnstile RFID Card Auto Entry Electric Turnstile Shenzhen
Turnstile Barrier Gate for Sporting Venue
Description Of Train Turnstile
1. Bi-directional or single-way optional.
2. Silk printing logo: Available
3. Built-in mechanical lock to prevent forced opening of arms.
4. Panel swing Material: Stainless steel /Acrylic plate / tempered
glass are optional.
5. Widely used in Commercial Buildings, Airports, Metro Stations,
Libraries, Factories, Exhibition Centers, Gyms, and Government
Institutions.
6. This turnstile with swing panels is designed in a modern and
elegant style and provides an ideal contactless solution for access
control at sites with high aesthetic and comfort requirements.
Specification Of Train Turnstile
| 1 | Cabinet dimension | diameter of pillar is 168mm, the height is 1050mm |
| 2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| 3 | Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 | opening/closing time | 0.2s |
| 5 | Arm material | thickness 10mm Acrylic, or tempered glass or steel |
| 6 | Access mode | single in/out or Bidirectional |
| 7 | Passthrough Width | 550 mm - 1800 mm for a pair or 60-90mm for a pc |
| 8 | Swing arm angle | 180 degree |
| 9 | Communication interface | RS485, TCP/IP |
| 10 | Time of opening/closing | 1 second |
| 11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| 12 | Reset time after break down | default 10s can be changed to fit different demands |
| 13 | MCBF | 5,000,000 Cycles |
| 14 | Working humidity | 30%~95% |
Features Of Train Turnstile
◊ Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow,
overtime alarm etc.
◊ Bi-directional or single way optional.
◊ Gate auto-open when power is off to meet the fire protection
requirements.
◊ Anti-Tail gaiting feature built in to prevent unauthorized entry.
◊ The wings will open automatically during power interruption, and
recover N/C mode after poweron(optional)
◊ Fast opening and closing time.
Projects Of Train Turnstile
Exhibition halls,
Commercial buildings.
Parks,
Offices,
Public Places
Stadium,
Library,
Museums
Advantages Of Train Turnstile
1. We Focus on Turnstile for more than 13 years.
2. We do customize Service. OEM, OEM is available.
3. We Optimize For Lower Cost, remove unnecessary features/use
mould design, save your money!
4. We Timely Response every customer! Response to customers whoever
did business with us in 3mins, and assist with project solutions
later.
FAQ Of Train Turnstile
1. Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
2. How does your factory control the quality?
Vivian: Quality control from the beginning to the ending.
3. Can your machines be used outside?
Vivian: With waterproof function, could be used outside.
4. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
5. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If order
amount >5000USD, it is 50%T/T in advance and 50%T/T before
shipment (can be further negotiated for best cooperation between
us).
Custom Of Train Turnstile
1. The dimension of swing panels could be custom-made.
2. can add visible-color LED lighting for glass panels, like green,
blue, red, etc.
3. The material of swing panels can be steel / acrylic / tempered
glass. So you can charge our standard swing panels if they have a
special requirement.
Installation Of Train Turnstile
1. Use independently, as shown below.
also, the swing panels can be replaced with steel material, also
the size can be custom-made.
2. Use together with another access columnwhich can be integrated with different recognition terminal, such
as RFID card reader/ barcode scanner/ fingerprint reader/ face
recognition, etc.
i). QR code, 1&2D barcode or ticket scanner;
ii). RFID cards, wristband,token, button, etc.
iii). Fingerprint.
iv) facial recognition.

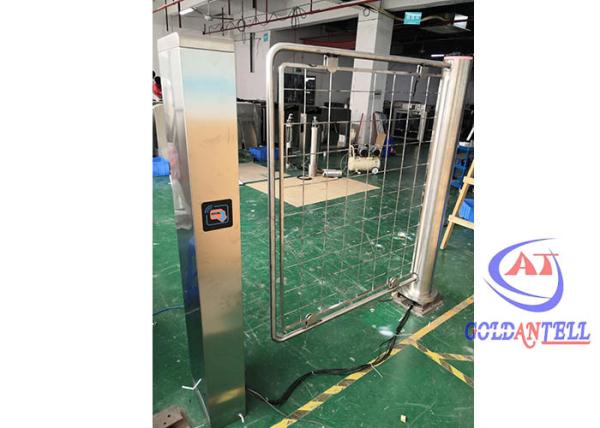

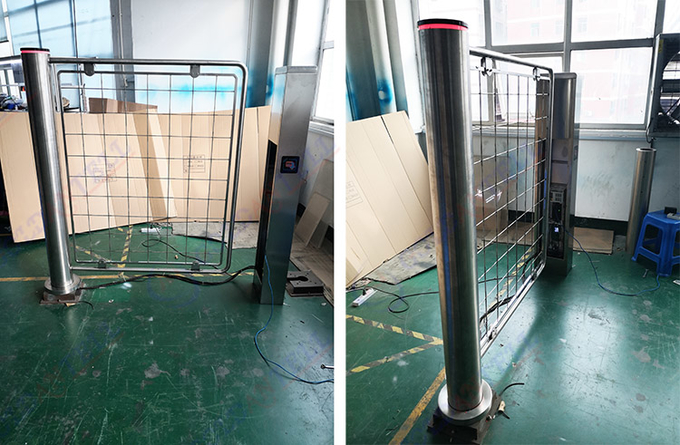

Photos Of Train Turnstile

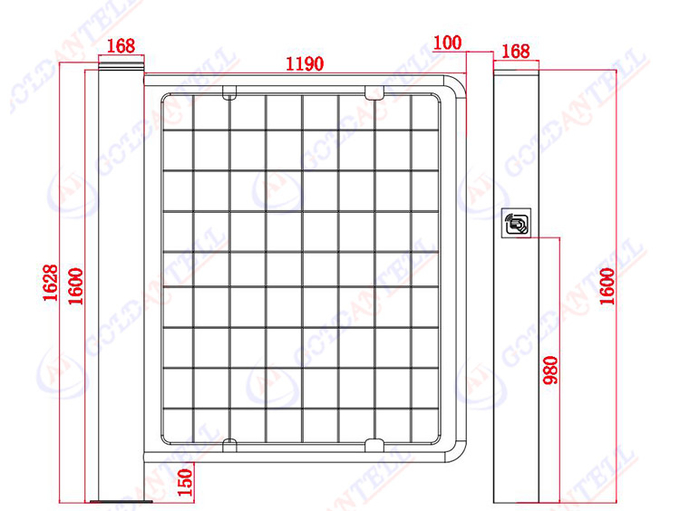

Drawing Of Train Turnstile
Ref to this design, we can customize the Height & Width of
passageway.
