Wide Lane Pedestrian Swing Gate , Automatic DC Entrance Barrier Gate Office Building

    Buy cheap Wide Lane Pedestrian Swing Gate , Automatic DC Entrance Barrier Gate Office Building from wholesalers

    Buy cheap Wide Lane Pedestrian Swing Gate , Automatic DC Entrance Barrier Gate Office Building from wholesalers
    • Buy cheap Wide Lane Pedestrian Swing Gate , Automatic DC Entrance Barrier Gate Office Building from wholesalers

    Wide Lane Pedestrian Swing Gate , Automatic DC Entrance Barrier Gate Office Building

    Ask Lasest Price
    Brand Name : Goldantell
    Model Number : GAT-686
    Certification : CE certificate
    Price : negotiation
    Payment Terms : T/T ,western Union,LC,Paypal
    Supply Ability : 2,000pcs per month
    Delivery Time : 7-9 working days after received your payment
    • Product Details
    • Company Profile

    Wide Lane Pedestrian Swing Gate , Automatic DC Entrance Barrier Gate Office Building

    Automatic DC Wholesale office building slim gate wide lane turnstile suitable swing barrier
    ——————————————————————————

    Working Performance
    1. Heavy duty, high Size prevents user from climbing over the gate to gain unauthorized access.
    2. Anti-crash funtion. even if pedestrian forcefuly crash the swings gate, it can run smoothly well.
    3. Auto close timer protection. Arms will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.
    5. Emergency evacuation.During power failure, swing arms will automatically open and will automatically close back after power supply resumed. Of course,the swing arms can be automatically locked if power failure and only be open by access control ,to meet different demand of users.
    6. Easy integration. Reader holder bracket is available for installing RFID wristband / token / cards reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket as well.
    7. With function of self-examine and alarm, it is convenient for maintenance and use.
    8. Being able to program running status by the small keyboard in the main board.

    Technology parameter
    Optimal flow rate40 persons/min (open), 25-30 persons/min (closed)
    Cabinet dimension1400(L)* 200(W)* 1000(H)MM
    Open typepush button/ access control
    Passing directionsingle in/out or Bidirectional
    Working temperature-15°C +75°C
    communication with computerstandard RS485, TCP/IP
    Reset time after break downdefault 10s,can be changed to fit different demands
    Wing Materialstainless steel
    Access Readersrfid cards , fingerprint, Barcode ,ticket scanners
    Input Connection+12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms
    More Optional functioncoin controller, counter , sound alarm, speakers
    Running Life3 Million(Continuous Opening and Closing Operation)
    Protection GradeIP54

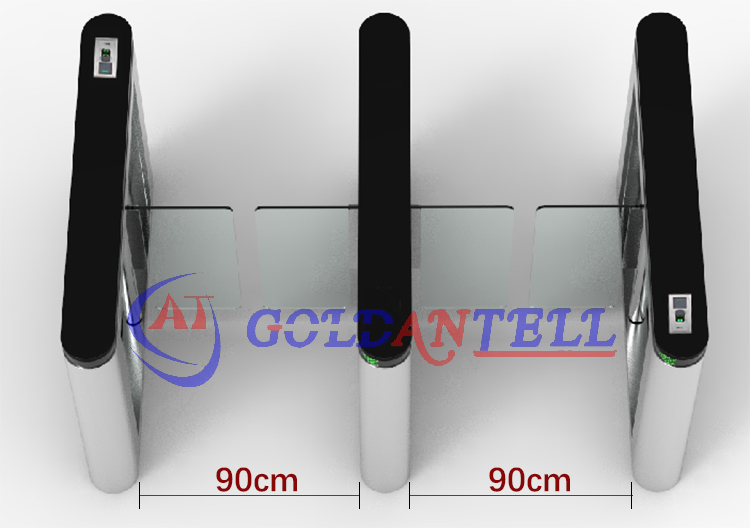

    Product Display

    Site Appication
    Access Width : within 600mm space, more comfortable for pedestrian to pass through the gate.
    Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
    Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
    Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.

    Feature & Function

    1. With function of self-examine and alarm, it is convenient for maintenance and use.
    2. Being able to program running status by the small keyboard in the main board
    3. Auto close timer protection. Flap will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.
    5. Emergency evacuation.During power failure, flaps will automatically open. Flap wing will automatically close back after power supply resumed.
    6. Easy integration. Reader holder bracket is available for installing RFID reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket.
