Bi-directional Pedestrian qr code swing barrier gate turnstile
glass speed pillar door system for gym
Description:
1. Standard features: Made of 304 /316 stainless steel,Goldantell
tripod turnstile with nice and elegant shape,anti- rust,durable,
Resistant to external damage.
2. Standard Functions: Rectangular box and brake lever to be a
passage,provide orderly passage to people. Prevent illegal in and
out.Arms off in emergency case.
3. Application place: This item is widely suitable for high- level
neighborhoods, intelligent buildings, hotel, subway, port and club,
etc.
4. System Integration: This equipment is subtly integrated with
machine, electronics, micro- processor control and ID
identification, provides convenience for the use of card reader
identification equipment, such as IC card, ID card, bar code and
fingerprint. It can carry out intelligent control and management to
the passageway through choosing various identification equipment
and adopting fair, reliable security protection, alarming equipment
and direction indicating equipment.
Specifications:
| Working voltage | AC220±10%V 50±10%HZ |
| Size | the diameter of pillar is 168mm, the height is 1050mm |
| Passage width | 550 mm - 1800 mm |
| Swing arm angle | 180 degree |
| Direction | single or bi-directional (optional) |
| Time of opening/closing | 1 second |
| Control ways | Push button, RFID card, fingerprint , recognition etc. |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Normal running life | 3 million |
| Working environment | indoor/outdoor (with a tent over)
-10℃～70℃ |
| Driving motor | DC 24 V brushless motor, or Servo motor |
Classification:
1. Vertical shape
2. Bridge shape
3. Pillar shape ( this item is the bridge shape ).
4. Single motor and Double motor: single motor (suitable for single
passageway and multiple passageway); Double motors (suitable for
multiple passageways)
Standard Function:
1. Alarm function: when arms are pushed by force illegally, alarm
will be triggered automatically and arms will be set locked.
turnstile can check by itself when it is have problem, it is good
for customer to maintain and use.
2. The turnstile will closed the door when somebody enter the gate
illegal, Tailgating or break into negative direction gate.
3. Before received the open signal, the turnstile will lock
automatically
4. The arm have the collision avoidance function: when the
turnstile arm closed, if it is under the collision, the arm will
open to protect the Transmission of inner machine.
5. Automatic Reset Functions: after you swap the card, during the
specific time (the system is 10s), if you didn’t pass the
turnstile, the system will cancel your authority automatically to
pass the gate, (reset time is 1~60s you can adjust it what time is
suit for you). totally meet the fire protection needs.
6. Turnstile can setting the working condition by press the button
of main control board.
7. The turnstile can work with door access control system/
consumption system /biometric recognition system/ ESD system and so
on.
8. The turnstile is bidirectional (pedestrian can enter and exit
from one pair of turnstiles).
9. Can manager and long-range control the turnstile directly by
managing the computer.
10. Flashing light prompt function: it is convenient to find the
turnstile problem by administrative staff.
Extended function:
1. Infrared logical judgment function (you can choose 8 pairs or 10
pairs Infrared) Voice Prompt Function.
2. Normally open or closed can be adjust to meet the requirements
of the different place. Sound and light alarm prompt functions
3. Voice Prompt Function
4. Sound and light alarm prompt functions
5. LED counting function
6. Box house can lengthen, swing arm lengthen

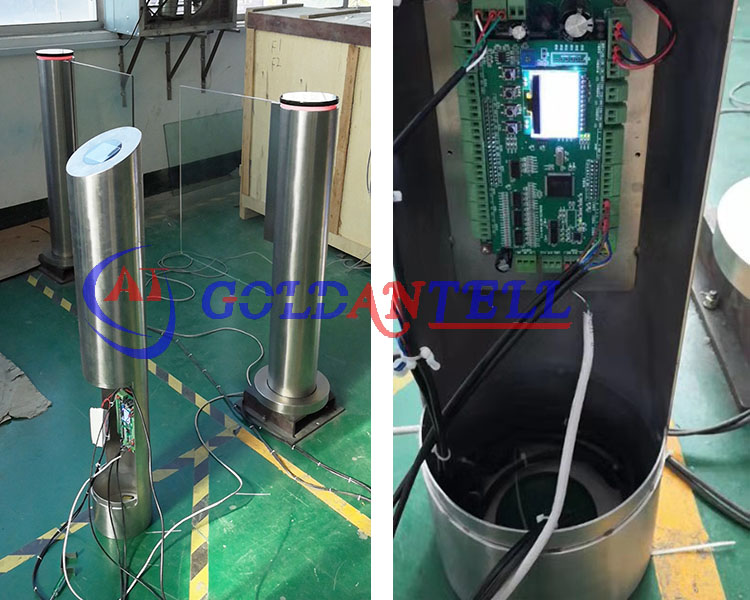

Product Photos:
Application & Different Access Control:
Entertainment Places | Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,
Swimming Hall,Fitness Gym |
| Public Places | Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition
halls, Stadiums, Museums,Apartments,Residence Area, Offices,
Commercial buildings. |
Business Organizations | Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance
and Exit Attendance |
| 1. Face recogniton (temperature test) | 2. Fingperint reader ( or button) | 3. RFID reader or QR code scanner |
Package details:
1. With an access control system, need the closed wooden case
packing.
2. Without the access control system, two ways for your choice:
crate and closed wooden box.
3. One pair needs two packages, the one needs a package.
Popular items for your choice:
Appearance, Dimension, Material & Surface Finish
1. Appearance: customized according to customer’s requirement.
2. stainless steel thickness of the cabinet: customized within
1.2~2.0mm.
3. Material of the cabinet: 304 / 316 grade stainless steel.
4. Surface finish of the cabinet: satin finish / polishing / anti-
fingerprint/frosted finish / electroplating / baking finish.
Competitive Advantage:
1. All items have 24 month quality guarantee.
2. Custom design shape and logo ,for large amount, custom logo
available for free.
3. Fast delivery.
4. Supported by professional engineers.
5. Special discount of our distributors or agents in their area.
6. Packing in standard export carton, suggest you pack it by wooden
case to protect the products.
7. CE, ROSH available.
