Subway High Traffic-flow Flap barrier library turnstile with rfid
arm gate library security For Gateway Guard
Working Performance
1. Heavy duty, high Size prevents user from climbing over the gate
to gain unauthorized access.
2. Anti-crash funtion. even if pedestrian forcefuly crash the swings gate, it can run smoothly well.
3. Auto close timer protection. Arms will auto close if there is no
pedestrian pass through after the delay time elapsed. This prevent
unauthorized user from sneaking into the building.
5. Emergency evacuation.During power failure, swing arms will
automatically open and will automatically close back after power
supply resumed. Of course,the swing arms can be automatically
locked if power failure and only be open by access control ,to meet
different demand of users.
6. Easy integration. Reader holder bracket is available for
installing RFID wristband / token / cards reader underneath cover
plate. bar code scanner or fingerprint reader can be installed in
the bracket as well.
7. With function of self-examine and alarm, it is convenient for
maintenance and use.
8. Being able to program running status by the small keyboard in
the main board.

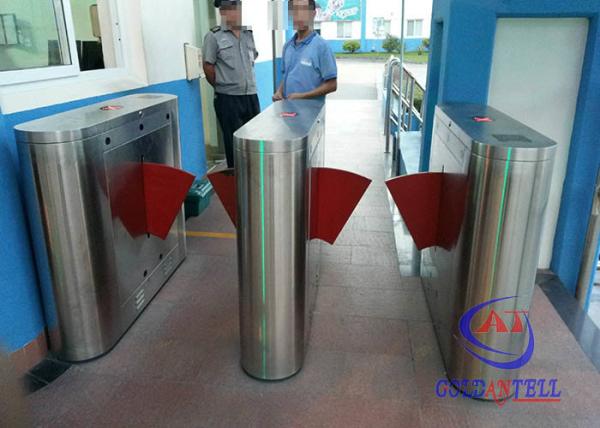

Product Display
Access Width : within 600mm space, or customized 900mm
♦ Public Places: lobby entry, Subway, Airports, Stations,Library,
Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
♦ Entertainment Places: Movie theaters, Fitness halls, Country
clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School,
Enterprise’s Entrance and Exit Attendance.
Technology parameter of Flap barrier
| Optimal flow rate | 40 persons/min (open), 25-30 persons/min (closed) |
| Cabinet dimension | 1400/1200(L)* 280(W)* 1000(H)MM |
| Open type | push button/ access control |
| Passing direction | single in/out or Bidirectional |
| Working temperature | -15°C +75°C |
| communication with computer | standard RS485, TCP/IP |
| Reset time after break down | default 10s,can be changed to fit different demands |
| Wing Material | stainless steel |
| Access Readers | rfid cards , fingerprint, Barcode ,ticket scanners |
| Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal,
Current>100ms |
| More Optional function | coin controller, counter , sound alarm, speakers |
| Running Life | 3 Million(Continuous Opening and Closing Operation) |
| Protection Grade | IP54 |
Feature & Function
1. With function of self-examine and alarm, it is convenient for
maintenance and use.
2. Being able to program running status by the small keyboard in
the main board
3. Auto close timer protection. Flap will auto close if there is no
pedestrian pass through after the delay time elapsed. This prevent
unauthorized user from sneaking into the building.
5. Emergency evacuation.During power failure, flaps will
automatically open. Flap wing will automatically close back after
power supply resumed.
6. Easy integration. Reader holder bracket is available for
installing RFID reader underneath cover plate. bar code scanner or
fingerprint reader can be installed in the bracket.
