Intelligent esd checker and card access system for entrance
ESD detection Descriptions
1. Item model: GAT-ESD305
2. It can stand and work alone, or be built into different styles
of Channel turnstile gates like a Flap barrier or tripod.
3. Has an 8 inches monitor, display all info of users, like photo, name, card ID, depart/
entry time, esd measurement data, etc.
4. Has software that also supports swipe IC/ID cards, can log out
all data from your computer that installed this software.
Technology Parameter
| 1 | pedal size | (W) 400mmx (L) 420mmx (H) 20mm |
| 2 | Operating voltage | input AC220V output DC12V |
| 3 | Working hours | unlimited |
| 4 | Environmental conditions | Humidity: 0%~90%, Temperature: 5C°~ 40°C |
| 5 | Automatically store records and ESD test data (except client mode),
recording information up to 100,000 or more. |
| 6 | Test Range and Accuracy (Note: The ESD checker meets the standards of other countries. The
upper and lower limit values of the test range can be adjusted
according to customer requirements.) |
Left shoe setting 0.01-1000MΩ,Accuracy ±5% Right shoe setting 0.01-1000MΩ,Accuracy ±5% Wrist-strap setting 0.1-35MΩ,Accuracy ±5% |
Operation Procedure
1. Stand on the pedal.
2. Insert the wrist strap into the test hole.
3. Swipe the card first, then touch the metal test button with your
finger.
4. Please do not touch other parts of the machine.

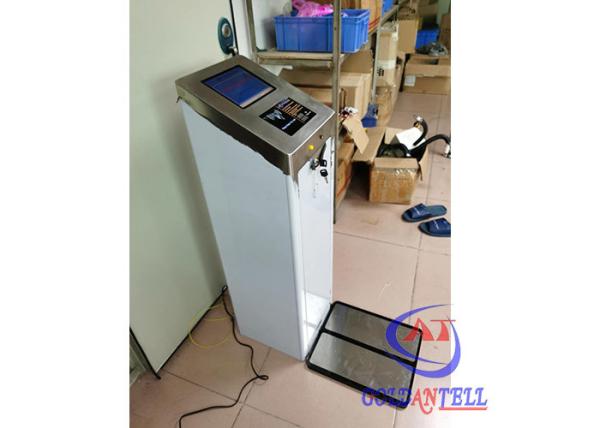

Product Photos
Function & Working mode
Support the Employee mode and guest mode. Employee mode need to use
EM card and it can show Name, Card No.,Date&Time. It has four
ESD modes as below:
A. Door opens after swiping EM card and wrist strap and footware
test passed;
B. Door opens after swiping EM card and footware test passed
C. Door opens after swiping EM card and wrist test passed
D. Door opens directly after pressing buttons No need swiping EM
card in guest mode. Door just opens after wrist and footware test
passed
3. This tester is a triple play tester that combines checking
attendance,access control and ESD testing.
FAQ
1. Can I have a simple system that only supports esd test without
software?
Vivian: sure, there are more options. our catalog can provide to
help you make a choice.
2. What is the language version available for the software system
and displayed on the machine?
Vivian: English / Chinese.
3. Can I have a software manual or installation instructions?
Vivian: sure, no problem, manual in the English version is
available as well.
4. What is the MAQ?
Vivian: 1 pc.
