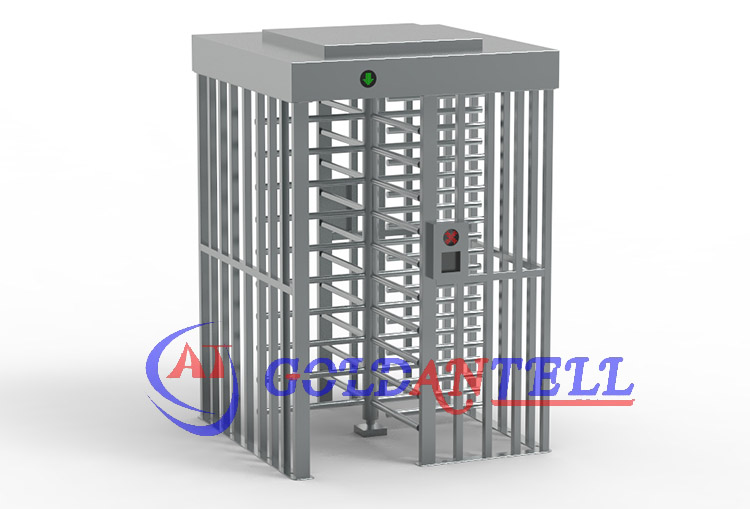

QR code nfc reader single door full height turnstile gate with the
roof for Railway Outside
Descriptions
Goldantell intelligent Series of turnstile gates with excellent
design and good performance are produced by utilizing innovative
technology and high quality material, are available with unique
features for wide range of security, commercial and industrial
applications to meet customer satisfaction. Our pedestrian barrier
Gates can provide a level of security to meet any challenging
requirements, including anti-pinch, time attendance, or passing
management, etc.The complete stainless steel construction is suited
for interior or exterior applicati
Specification
| Power | AC220C±10V,50HZ |
| Operating Temperature | -15°C--75°C |
| Access Width | 550mm ~ 600mm ( or custom-made) |
| Passing Speed | 30-40persons/min(IC/ID Card) |
| Motor | 60W/24V |
| Wing Material | Transparency organic glass or Red soft material |
| Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal,
Current>100ms |
| Communication Connection | RS485 Communication Module Standard. |
| Material | SUS304,thickness is no less than 1.5mm |
| Running Life | 3 Million(Continuous Opening and Closing Operation) |
| Protection Grade | IP54 |
| Color | SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or
other Color you like |
| Operation Place | Subway Station, Hover port, Tourism Sports, Exhibition, Swimming
Hall, Residence Area, and so on |
Functions & Features
1. Can be used with access control systems, consumer systems,
electronic ticket system, biometric systems, static tester and
other equipment of convergence.
2. Can be unidirectional or bidirectional control of personnel
access.
3. Can be directly through the management computer to realize
remote control and management.
4. LED indicator light.
5. Box house can lengthen, can make custom design.
6. Normally open or closed can be adjust to meet the requirements
of the different place.
Product Display
1. LED indicator light ( optional ).
2. Fingerprint reader (optional, other control ways: push button,
coin- operation, access control system like card reader, etc.)
3. The control board of full height turnstile.
4. Material: standard 304 stainless steel (optional, 316).
Outdoor Installation
♦ Stadium
♦ Prison
♦ Factory
♦ Bank
♦ School
♦ Airports
♦ Stations
