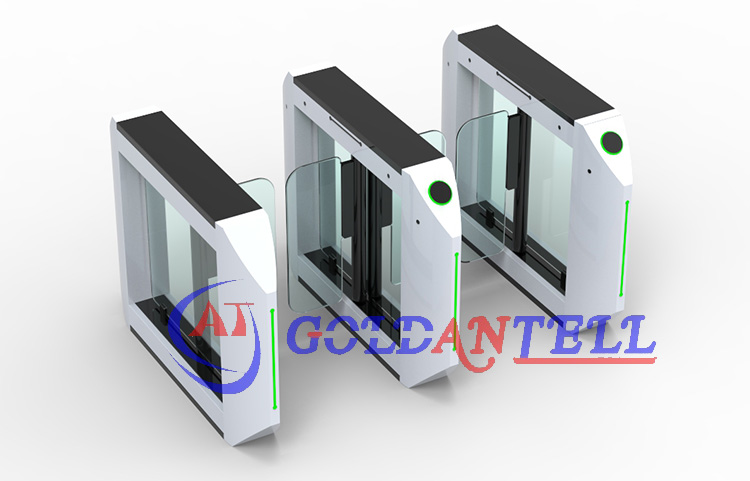

SDK intelligent thermal imaging thermometry turnstile
anti-collision security access system
Features Description
1. Infrared reset function (Optional:4 pairs or 6 pairs Infrared).
2. Infrared induction clamp function (4 pairs Infrared).
3. The turnstile can work with door access control system/
consumption system /biometric recognition system/ ESD system and so
on.
4. The turnstile is bidirectional (pedestrian can enter and exit
from one pair of turnstiles).
5. Turnstile can setting the working condition by press the button
of the main control board.
6. Anti-pinch function: turnstile have Mechanical/ infrared
induction Anti- pinch functions( when it is meet the hinder during
the reset time, the electrical machine closed work automatically in
specified time, the turnstile will default the delayed and reset
again till reset succeed).
Product Classification
1) Vertical shape
2) Bridge shape: this model
3) Pillar shape (or tube type)
4) Single motor and Double motor: single motor (suitable for single
passageway and multiple passageway); Double motors (suitable for
multiple passageways).
OEM/ODM Services
1. printing company logo: more elegant performance, to show company
info.
2. customized design: the length & width & shape can be adjusted to
make your satisfaction, for example, the led indicator and LCD
display screen can be added or changed according to your demand.
Technical parameters
Working voltage: | AC220±10%V, 50±10%HZ |
Pass width | 600mm, or 900mm (custom-made) |
Pass speed: | 40 persons/min (open), 25-30 persons/min (closed) |
Normal running life: | 3 million |
Time of opening/closing: | 0.6 second |
Time to work after power on: | 3 seconds |
Reset time after break down: | 10 seconds |
Working environment: | indoor/outdoor (with a tent over) -10℃～70℃ |
Communication interface: | standard RS 485 interface,distance ≤1200m |
Input interface: | +12V level signal or pulse width>100 ms
12V pulse, drive current>10mA |
Relative humidity: | ≤90% coagulation free |
Design Show
Technology parameter of Face Recognition Device
1. standard face database 10,000 people, optional ID card reader,
IC card reader and access control Wiegand signal output;
2. built-in MIC, audio output interface;
3. using 10.1 inches high-resolution top LVDS LCD screen;
4. using a high-accuracy face recognition algorithm, can work
offline, the fastest 0.2S to respond.
Security Functions
-Always open or close modes, When Fire alarm on, The acrylics will
retract automatically.
-Ensures rapid, efficient & safe access control.
-Individual installation interface, easy to integrated with
Magnetic card, Barcode card, ID card, IC card etc.
-Photo Electric Beams installed standard for all models.
