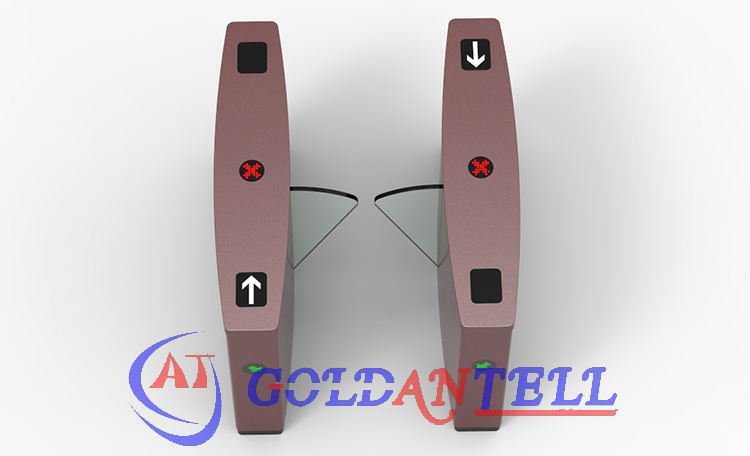

acrylic glass infrared reset flap turnstile OEM pedestrian security
luxury thermal access control channel
Product Brief
1. It is well adopted in entrances and exits of buildings or
construction sites, to help to track staff and visitors. Only
authorized users are able to access to specific areas through the
flap barriers. RFID, fingerprint verification, face recognition,
and vein verification technologies are available for options of
flexible access control system.
2. It is finely processed with complete functions and high-security
level, suitable for high-level neighborhoods, commercial buildings,
and so on.
Security Features
1. Low noise, no mechanical impact
2. Resetting automatically, auto cancel the pass through and closed
barrier in case nothing pass the channel in a setting time
3. Anti-pinch function with UPS to satisfy firefighter requires,
ensure user’s safe
4. Break-in,tail,over-pass and reverse alert function in order to
keep orderliness and effective manage
5. Standard input/output port, meanwhile leaving a port space for
installing RS485 communication, connect and manage the integrated
systems through the remote PC.
6. Super combination capacity, adjustable model on site, adjustable
speed of barrier slide, Open signal with memory, or without set
function.
Onsite Application
1. Public Places: lobby entry, Subway, Airports, Stations,Library,
Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Entertainment Places: Movie theaters, Fitness halls, Country
clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
3. Business Organizations:
Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance
and Exit Attendance.
Technical specification
| Cabinet dimension | 1400 (L) x 300 (W) x 1000 (H) mm |
| Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Opening/closing time | 0.6s |
| Lane width | normally 600mm, can lengthen |
| Access mode | single in/out or Bidirectional |
| Optimal flow rate | 35 persons/min (open), 25-30 persons/min (closed) |
| Reset time after break down | default 10s, can be changed to fit different demands |
FAQ
Q: How long is your warranty period?
A: Standard One-year guarantee & lifetime technical support.
Q: How about the lead time?
A: Regular products need 7-10 working days; the customized products
need 10-15 working days.
Package Info
1. Inside with a carton package.Then outside,there are 2 kinds of
packages under your choice:
2. crate package and closed wooden package.
Lanes Layout & Design
1. Multiple lanes ( 2, 3, 4 or more channels, passageway required);
2. Single-lane (channel), as shown below, use two units of a
single-motor machine.
