2 Channels Contactless Infrared Anti Jump Tripod Turnstile Gate

    Buy cheap 2 Channels Contactless Infrared Anti Jump Tripod Turnstile Gate from wholesalers

    Buy cheap 2 Channels Contactless Infrared Anti Jump Tripod Turnstile Gate from wholesalers
    • Buy cheap 2 Channels Contactless Infrared Anti Jump Tripod Turnstile Gate from wholesalers

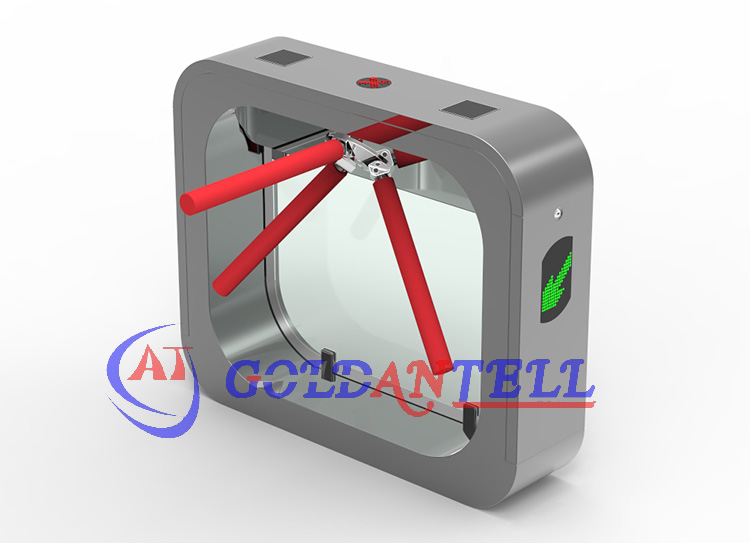

    2 Channels Contactless Infrared Anti Jump Tripod Turnstile Gate

    Ask Lasest Price
    Brand Name : Goldantell
    Model Number : GAT-342
    Certification : CE certificated
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 1,000pcs per month
    Delivery Time : 7-9 working days after received your payment
    • Product Details
    • Company Profile

    2 Channels Contactless Infrared Anti Jump Tripod Turnstile Gate

    2 Channels Contactless Infrared Anti Jump Tripod Turnstile Gate


    Modern Contactless Time Attendance Infrared anti-jump tripod turnstile 2 channels


    Product Profile

    1. Tripod door is simple, economical and compact equipment for entrance solutions.

    2. Turnstile 3 arm tripod is a double leg/bridge type tripod turnstile for locations aiming for pedestrian access control and medium level security.

    3. The body is made of brushed stainless steel which is robust, rigid, anti-rust, and durable.

    4. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).

    5. In case of emergency, the turnstile horizontal arm will drop down to allow free passage when power off.

    6. It is suitable for areas with high traffic.


    Tripod Turnstile Parameters

    Specifications
    Item NumberGAT-342
    Housing materialstandard 304 stainless steel
    Control TypeFull automatic, semi-auto, or manual operation
    Size1200*280*1000mm
    Working voltageAC220/110±10%V; 50±10%HZ

    Power Consumption

    20W
    Passage width≤600 mm
    Pass speed30 persons/min
    MechanismSolenoid lock
    Normal running life3 million
    LED lightoptional, direction arrow
    Directionsingle or bi-directional (optional)
    EmergenceWhen powering off, arm open
    Working environmentIndoor/ Outdoor available
    Communication interfaceRS485, TCP/IP

    Features & Functions

    1. Automatic reset function: when tripod turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically.

    2. When power off, tripod turnstile arms will drop down automatically, which is complying with fire safety requirements.

    3. Single direction or double direction optional
    4. Railing will be off when power off
    5. Counting function, if read the card for N times, N persons can pass before the railing close, N<=8(optional function)
    6. Voice prompt and display screen available (optional)
    7. External counter can be connected to count number of passed people (optional)
    8. RS485communication, PC command through serial port is allowed (optional)
    9. Alarming output for pushing the railing without permission(optional).


    Special Functions

    1. counter: which records the pass times.

    2. Coin or Token collector;

    3. Card collector.

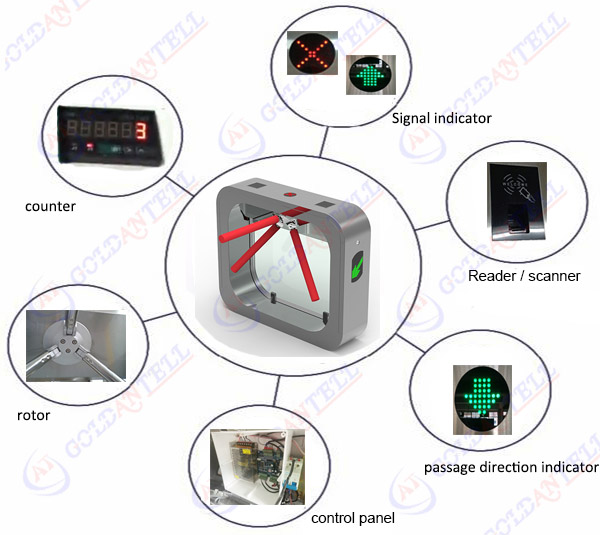

    Accessories of Tripod


    Application Projects

    Exhibition halls

    Stadium

    Museums, Apartments

    Residence Area

    Movie theaters

    Fitness Gym.

    Factory

    Hospital


    FAQ
    1. How long is your warranty period?
    Vivian: One-year guarantee & Lifetime technology support.
    2. How about the payment method?
    Vivian: If order amount <=5000USD, 100%T/T in advance. If the order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
    3. Which payment terms are you accept?
    Vivian: T/T, Western Union, LC, PayPal, etc.
    4. Can we visit your factory?
    Vivian: Yes. Any time will be welcome.
    5. How about your package?
    Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap.

    Our Advantages

    1. Any email will be checked in 5 minutes, any inquiry will be replied to within 1 hour, and any solution will be supplied in 1 day.
    2. Professional R&D team and manufacturer, supply OEM & ODM.
    3. Best quality, Fashion design, reasonable & competitive price, fast lead time.
    4. After-Sale Service: free warranty service. Also, we provide lifetime technical support online, by email, video, phone, etc.
