SS304 Card Dispenser Remote Control 0.2s Swing Barrier Gate
SS304 Card Dispenser electronic counter system for turnstile Remote
control button barrier
Brief Description

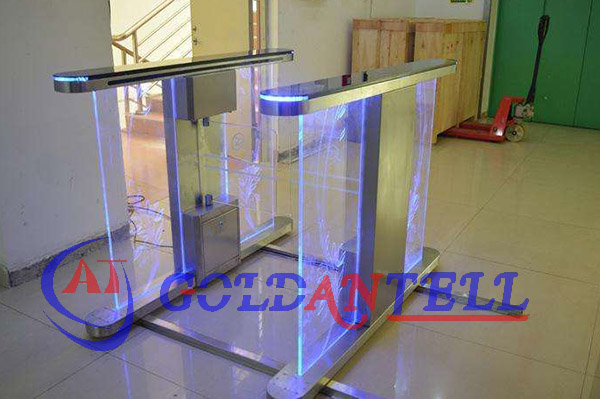

1. This turnstile with swing panels is designed in a modern and
elegant style and provides an ideal contactless solution for access
control at sites with high aesthetic and comfort requirements.
2. It has a visible high glass panel that prevents a user from
climbing over the gate to gain unauthorized access. Glass panel
slides open horizontally to provide an unobstructed passageway.
3. Higher flow rate and better anti-tailgate functions.
4. Gate auto-open when power is off to meet the fire protection
requirements.
5. Can be compatible with facial recognition, IC card, QR code,
fingerprint reading device used for staff, provide civilized,
orderly access methods; effectively manage the access of staff.
6. Multi alarm modes: illegal intrusion, anti-intrusion,
anti-follow, overtime alarm etc.
7. Bi-directional or single way optional.
Technical specification
| 1 | Cabinet dimension | 1400 (L) x 300 (W) x 1000 (H) mm |
| 2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| 3 | Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 | opening/closing time | 0.2s |
| 5 | Arm material | thickness 10mm Acrylic, or tempered glass or steel (custom) |
| 6 | Access mode | single in/out or Bidirectional |
| 7 | Passthrough Width | 900mm (or custom) |
| 8 | Mechanism | DC Brushed motor+Clutch (or Servo motor) |
| 9 | Communication interface | RS485, TCP/IP |
| 10 | Infrared sensor | 6~10 pairs |
| 11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| 12 | Reset time after break down | default 10s can be changed to fit different demands |
| 13 | MCBF | 5,000,000 Cycles |
| 14 | Working humidity | 30%~95% |
Security Features
◊ Anti-Tail gaiting feature built in to prevent unauthorized entry.
◊ The wings will open automatically during power interruption, and
recover N/C mode after poweron(optional)
◊ Fast opening and closing time.
◊ Built-in mechanical lock to prevent forced opening of swing flaps.
◊ Fail-safe design ensures that the swing flaps retract back into
the housing to allow unblocked access in the event of a power
failure.
◊ Active infra-red beams are located in the housing passage to
detect personnel or objects crossing the flap barrier to prevent
the flaps from causing injury or damage.
◊ Long service life with low operational cost.
Operation Application
1. Entertainment Places
Movie theaters,
Fitness halls,
Country clubs,
Fairground
Swimming Hall,
Fitness Gym.
2. Public Places
Subway, Stations,
Airports, Stadium,
Library, Museums
Parks, Offices,
Exhibition halls,
Commercial buildings.
Swing Speed Lane Project
Why Choose Goldantell?
1. We Focus on Turnstile for more than 13 years.
2. We do customize Service. OEM, OEM is available.
3. We Optimize For Lower Cost, remove unnecessary features/use
mould design, save your money!
4. We Timely Response every customer! Response to customers whoever
did business with us in 3mins, and assist with project solutions
later.
FAQ
1. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
2. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If order
amount >5000USD, it is 50%T/T in advance and 50%T/T before
shipment (can be further negotiated for best cooperation between
us).
3. Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
4. Can we visit your factory?
Vivian: Yes. Any time will be welcome.
5. How about your package?
Exported product: Wooden case package of Export exempted from
inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden
packaging.
