Intelligent Rfid Card Speed Gate Turnstile For Office Entrance Control

    Buy cheap Intelligent Rfid Card Speed Gate Turnstile For Office Entrance Control from wholesalers

    Buy cheap Intelligent Rfid Card Speed Gate Turnstile For Office Entrance Control from wholesalers
    • Buy cheap Intelligent Rfid Card Speed Gate Turnstile For Office Entrance Control from wholesalers

    Intelligent Rfid Card Speed Gate Turnstile For Office Entrance Control

    Ask Lasest Price
    Brand Name : Goldantell
    Model Number : GAT-new
    Certification : CE
    Price : negotiation
    Payment Terms : T/T ,western Union,LC,Paypal
    Supply Ability : 1,000pcs per month
    Delivery Time : 7-9 working days after received your payment
    • Product Details
    • Company Profile

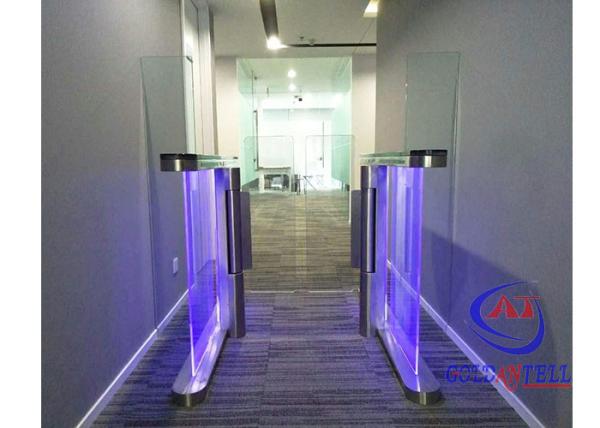

    Intelligent Rfid Card Speed Gate Turnstile For Office Entrance Control

    China Quick Pass intelligent rifd card entrance full high turnstile Temperature detector for office entrance control


    Product Description

    ◊ This product is a special type of face temperature rapid detection products, can replace the traditional market thermometer.

    ◊ Has dual-motor movement type and single-movement type, to make multiple passageway lanes.
    ◊ Equipping with intelligent Tripod turnstile, flap turnstile, and swing barrier.

    It is finely processed with complete functions and high-security level, suitable for high-level neighborhoods, commercial building, and so on.


    Technical specification of Swing Turnstile

    1Cabinet dimension1400 (L) x 300 (W) x 1000 (H) mm
    2Cabinet material304 stainless steel (316 ss can be custom-made)
    3Switching power supplyAC220±10%V 50Hz or AC110±10%V 60Hz
    4opening/closing time0.2s
    5Arm materialthickness 10mm Acrylic, or tempered glass or steel (custom)
    6Access modesingle in/out or Bidirectional
    7Passthrough Width900mm (or custom)
    8MechanismDC Brushed motor+Clutch (or Servo motor)
    9Communication interfaceRS485, TCP/IP
    10Infrared sensor6~10 pairs
    11Optimal flow rate40 persons/min (open), 35 persons/min (closed)
    12Reset time after break downdefault 10s can be changed to fit different demands
    13MCBF5,000,000 Cycles
    14Working humidity30%~95%

    Project Application

    1. Entertainment Places
    Movie theaters,
    Fitness halls,
    Country clubs,
    Fairground
    Swimming Hall,
    Fitness Gym.
    2. Public Places
    Subway, Stations,
    Airports, Stadium,
    Library, Museums
    Parks, Offices,
    Exhibition halls,
    Commercial buildings.


    Functions & Features

    1. Low noise, no mechanical impact

    2. Single directional or Bi-directional

    3. High operation with quick response

    4. Directional LED Optical Signals: Green Arrow or RED Cross signage.

    5. With fault self-check function and Alarm function, convenience for maintains.

    6. Single lane or multiple lane set-up.

    FAQ

    Q: What is the flap gate Working environment?
    A: They can be used indoor and outdoor (added the rain shed)


    Q. Can I customize it?
    A: Yes, Welcome. We are the manufacturer, we have rich OEM/ODM experience for government, etc.


    Q: How about your package?

    A: Seaworthy wooden case + Foam.


    Q: How about the payment method?

    A: Standard products: 50% deposit, 50% balance payment before shipment.
