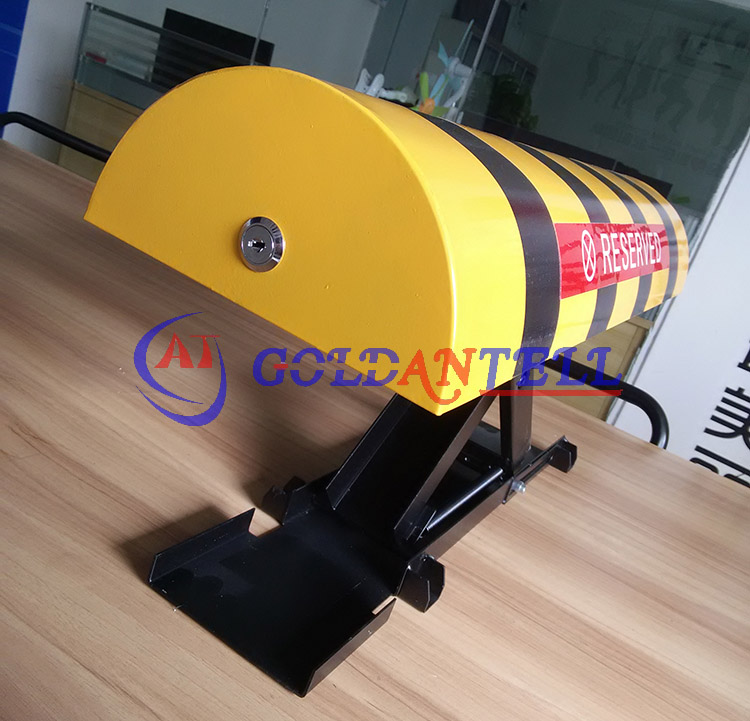

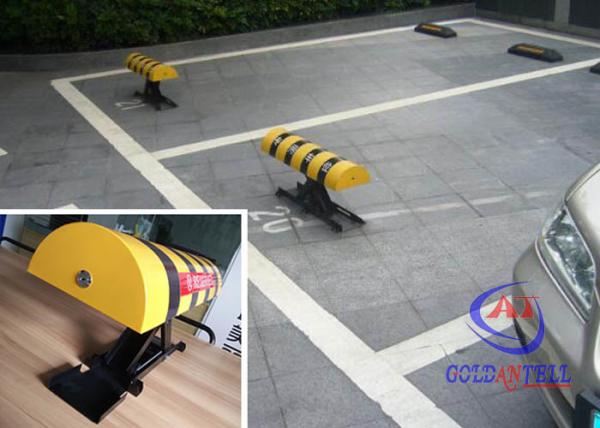

Auto Anti Collision A3 Steel Parking Lot Barrier Gate Under Remote
Control
Goldantell parking lock device series
Automatic Anti - Collision Design Parking Lot Barrier Under Remote
Control
1. Heavy duty & durabe:the sway arm with steel rolling can bear
max. 5tons weight.
2. Lower noise: smooth running working way, pretty flexible
responding speed.
3. IP54: With sway plastic , waterproof, rustproof and dust-proof.
Enough to last the about 5 years of usage under the heavy weather.
Standard Specification
Product Model | GAT-ABS11 |
Product Size | 640(L)* 190(W)* 950(H)MM, at the flat state (unlocked state) |
Up Height | 320mm |
Type | Auto remote control parking lock |
Remote Control Range | in 30 meter |
Up Or Down Time | 5-6 seconds |
N.W | 10kg |
| G.W | 13kg |
| Working Power (Storage Battery) | 7V 12AH |
| Working Power Supply (for charger) | 100~240 volt,50/60HZ, will be equipped under your situation |
Battery & Charge Instruction
1. When the battery is fully charged, the expected use is 300
operations or approximate 3 months assuming 2 lifts and 2 downs per
day.
2. When the battery is low and dry, an audible alarm will sound to
remind the owner to charge the battery. Open the control box with
the key and take out of the battery, take home to re-charge. This
must be plugged into 220/240 volt power. After 12 hours’
recharging, it’ll be ok.
3. In case of an emergency and the unit is standing up and will not
operate, use the hex key (supplied, it’s a good idea to leave this
key and key of the main box in your car), to open the main box and
to undo the screw. The pin will then be released. Remove the pin
and lay the whole unit down.
Spare Parts
1 user instruction in English
2 remote controllers
1 charger
4 fixed screws
1 Battery (optional)
Standard Features
1. Easy to Use: Touch the remoter to lower your automatic parking
lock to lay flat, then drive your vehicle into parking space; When
leaving, touch the remote, and your parking lock will automatically
rise up to prevent anyone else from using your parking space.
2. Easy to Install: Fix parking lock onto the ground by expansion
bolts, that is enough.
Details Display
Professional service
1. All items have 24 month quality guarantee.
2. Custom design shape and logo, for large amount, custom logo
available for free.
3. Supported by professional engineers.
4. Special discount of our distributors or agents in their area.
5. Packing in standard export carton, suggest you pack it by wooden
case to protect the products
