Newly designed RFID ticket counting tripod turnstile fingerprint
reader automatic 3 roller gate system
Quick Description Of Tripod Turnstile
1. The portable turnstile is the perfect waist high portable
turnstile for a variety of applications ranging from athletic
facilities, cafeterias, and schools, to amusement parks, stadiums,
and office buildings.
2. It can work bi-direction, or one direction permitted, one
forbidden, or one direction charged, one for free, and all the
working molds can be set by the buttons in the main control board.
3. Three rods can be lifted and fall when electricity is cut-off
4. CE certificated. Type:
5. The body is made of brushed stainless steel which is robust,
rigid, anti-rust, and durable.
6. Type: Semi-automatic; manual, and full automatic ( arms auto on
work status when power on);
Technology Parameters of Tripod Turnstile
| Size | 1200mm (L) * 280mm (W) * 1000mm (H) |
| Working voltage | AC110/220±10%V, 50±10%HZ |
| Working movement | DC24V solenoid valve |
| Arm width: | 510 mm |
| Support force of arm: | 60kg |
| Passage width: | ≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Emergence: | When power off, arms open automatically |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: | single or bi-directional (optional) |
| Working environment: | indoor/outdoor (with a tent over) -10℃~70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: | standard RS485 interface, distance ≤1200m |
| Housing material | domestic standard 304# stainless steel |
| Input interface: | +12V level signal or pulse width>100ms 12V pulse, drive
current>10mA |
Feature & Function Of Tripod Turnstile
1. Standard electronic interface, remote control through internet
which is also could connect variety card readers and receive relay
signal to work.
2. Open signal with memory or with out set function.
3. Use anti-passback movement, when people turn the three arms up
to around 60 degrees then arms can no longer turn back.
4. Use hydraulic shock absorb, can effectively control the speed of
the turntable, and no sound when rotation. reduce the vibration as
well.
5. Diverse control mode optional, changeable due to varying,
convenient for your manage.
6. Auto replacement function, re-position after person pass by.
Application Location
♦ Exhibition halls
♦ Stadium
♦ Museums, Apartments
♦ Residence Area
♦ Movie theaters
♦ Fitness Gym.
♦ Factory
♦ Hospital

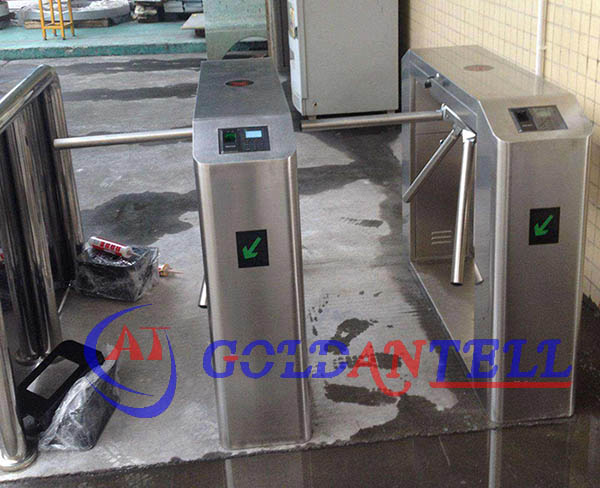

Product Photos Of Tripod Turnstile
FAQ
1) How about your package?
Vivian: Seaworthy wooden case + Foam.
2) Can your machines be used outside?
Vivian:With waterproof function, could be used outside
3) How about the lead time?
Vivian: Regular products need 5-8 working days. The customized
products need 9-13 working days.
4) What is your MOQ?
Vivian: Any quantity is acceptable.
5) How about the payment method?
Vivian: Standard products: 50% deposit, 50% balance payment before
shipment.
