8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static
Tester For Lab and Factory
Technology Parameter Of GAT-ESD305 ESD Tester
| 1 | Instrument Dimensions | 8 inch LCD monitor: built in tablet pc display all info of users, like photo, name, card ID, depart, entry time,etc. |
| 2 | pedal size | (W) 400mmx (L) 420mmx (H) 20mm |
| 3 | Operating voltage | input AC220V output DC12V |
| 4 | Working hours | unlimited |
| 5 | Environmental conditions | Humidity: 0%~90%, Temperature: 5C°~ 40°C |
| 6 | Automatically store records and ESD test data (except client mode), recording information up to 100,000 or more. |
| 7 | Test Range and Accuracy (Note: The ESD checker meets the standards of other countries. The
upper and lower limit values of the test range can be adjusted
according to customer requirements.) |
Left shoe setting 0.01-1000MΩ,Accuracy ±5% Right shoe setting 0.01-1000MΩ,Accuracy ±5% Wrist-strap setting 0.1-35MΩ,Accuracy ±5% |
ESD Tester Features
This ESD Tester can be used to save data online, with signal
output, 8 inch display monitor, included related software, tester
and voice prompts (additional), and employee card access control.
1. ESD test equipment can be quickly tested, and three independent
devices (Left Shoes, Right Shoes, Wrist Strap) be completely ESD
tested at one time.
2. Just install SQL Server2000/2008 and run the access control
management software system on any computer in your
company.
3. Through TCP/IP communication technology, you can connect 255
human body comprehensive testing equipment (255 sets of Flap
Turnstile / Tripod Turnstiles or other types). To monitor
employees' compliance with anti-static requirements in real time.

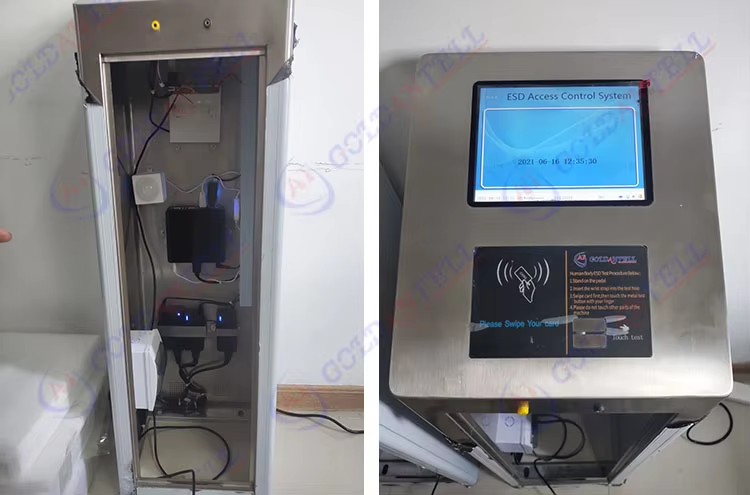

ESD TesterType 1-Vertical type can work alone (no need install on
turnstile gate)
ESD TesterType 2-Intall on Turnstile Gate
Applications of ESD Test Equipment
1.Electronics Manufacturing
- Semiconductor/chip production, electronics assembly, cleanrooms.
2. Healthcare
- Medical device manufacturing, operating rooms, labs.
3. Oil & Gas/Chemicals
- Flammable environments (storage, maintenance).
4. Precision Labs
- Microelectronics R&D, optical labs, reliability testing.
5. Industrial Logistics
- Printing/packaging, warehouse management.
6. Access Control
- Integrated gate systems with real-time monitoring.
Core Features & Advantages of GAT-ESD305 ESD Tester
1. Precision
- Measures charge/polarity (±10% error), multi-point testing
(shoes, wrist straps).
2. Real-Time Protection
- Alarm for excessive static electricity, integrates with grounding
systems/ionizers.
3. Flexibility
- Custom thresholds (e.g., 750KΩ–100MΩ), standalone or networked
use.
4. Data Management
- Logs/reports for audits, remote monitoring via TCP/IP.
About Goldantell:
Package of esd test equipment:inside carton,outside crate package or closed wooden package
